Chi-Fi
Excellence

1 Year of
Warranty

Ideal for
Audiophiles

Ideal for
Indoor Use

Bluetooth with
LDAC & aptX HD

Multi-point
Connection

Metal
Build

Pair with Laptop
via USB

ESS Sabre ES9038Q2M
DAC Chip

Connect With
USB, Optical & Coaxial

Volume
Controls

Wireless Range
30m

DESCRIPTION

FiiO introduces the all-new high-res certified Bluetooth transmitter+receiver, the BTA30 Pro. BTA30 Pro brings multiple upgrades including better USB decoding, higher quality Bluetooth connectivity and features a brand new ESS Sabre DAC chip. FiiO BTA30 Pro is a high-resolution Bluetooth transceiver (transmitter and receiver) embedded with Qualcomm’s latest CSR8675 Bluetooth chip. This high-performance Bluetooth chip offers support of high-resolution signal transmission with LDAC support in both transmitting and receiving stages.

FiiO BTA30 Pro features Qualcomm’s latest CSR8675 Bluetooth chip. This high-performance Bluetooth chip offers high-resolution signal transmission, with support for LDAC codec in both transmission and receiving stages. BTA30 Pro also adopts an XMOS XU208 USB processor chip that allows the BTA30 Pro to support high-resolution 32-Bit/384kHz PCM and native DSD512 decoding over a USB connection with a Windows/Mac PC. The BTA30 Pro can also connect to and remember two devices at the same time. Two new buttons allow you to manually choose which of the two Bluetooth devices you want to connect.

FiiO BTA30 Pro utilises Bluetooth 5.0 with support for the SBC/AAC/aptX/aptX LL/aptX HD/LDAC high-resolution codecs- and even supports transmitting and receiving LDAC. The aptX LL is also supported and prioritised for satisfying low-latency gaming. These high-definition Bluetooth formats cover a wider range and have faster transmission rates for up to 30 meters for a more exhilarating experience. Along with Bluetooth 5.0 connectivity, the BTA30 Pro also offers three modes of operation - RX mode for receiving Bluetooth, TX mode transmitting via Bluetooth and DAC mode for using the BTA30 Pro in wired setup as a DAC. All you need to do is connect your phone and turn it into a jukebox in wired mode.

FiiO BTA30 Pro utilises the power of a trusted ES9038Q2M DAC chip from Sabre technologies. It is a 32-bit DAC chip that provides high-resolution audio signal decoding with utmost precision and quality. With the BTA30 Pro and this premium Sabre DAC chip, you get to experience high-resolution audio signal decoding. This DAC is supported by XMOS's latest XU208 USB receiver providing support for 32-bit/384kHz and native DSD512 decoding support over the USB connection.

FiiO BTA30 Pro offers more versatility with the new Bypass mode, allowing you to connect to several different devices at the same time. When in Bluetooth transmitting mode, Bypass mode allows for optical input to optical/Bluetooth output at the same time. In DAC mode, Bypass mode makes it possible for optical input to the optical output. FiiO BTA30 Pro is amongst the very few Bluetooth desktop devices to incorporate pro-level audio volume adjustment methods. ADC curve reconstruction results in precisely controlled and balanced volume both in the analogue and digital domain.

FiiO BTA30 Pro not only supports Bluetooth and USB as input ports but also offers SPDIF coaxial, Optical digital inputs and RCA input connection. BTA30 Pro can serve as a high-fidelity desktop DAC if you require it to be. Along with multiple connectivity options the BTA30 Pro has dual Hi-Res Audio certification by the Japan Audio Society. Not only does the BTA30 Pro have the Hi-Res Audio certification but it also has achieved Hi-Res Audio Wireless certification for guaranteed excellent performance.

FiiO BTA30 Pro is built with a strong aluminium alloy body that gives the BTA30 Pro a luxurious shine along with a silky-smooth texture. BTA30 Pro features a well placed RGB indicator light that helps distinguish the current audio playback formats. The neat and uniform button arrangement as well as the clear indicator lights make it very convenient and easy to use. The BTA30 Pro can also be remotely controlled via the FiiO music or FiiO Control App for greater convenience.

SPECS

GENERAL SPECIFICATIONS

MODEL	BTA30 Pro
COLOR	Black
WEIGHT	≈145g
BLUETOOTH CONNECTION INDICATOR	Yes
FIRMWARE UPGRADE	System firmware and Bluetooth version can be upgraded through USB
BLUETOOTH TRANSMIT	SBC/aptX/aptX HD/aptX LL/LDAC
STATUS INDICATOR	SBC: Blue AAC: Teal AptX: Purple AptX HD: Yellow AptX LL: Green LDAC: White
MAX SUPPORTED SAMPLING RATE	384kHz-32bit/DoP256（USB DAC） 384kHz-24bit/DoP128（Coaxial） 96KHz-24bit（Optical）
HARDWARE SOLUTION	DAC: ES9038Q2M，USB: XMOS XU208 , BT： CSR8675，DSP：CT7302EL
VOLUME CONTROL	Potentiometer(ADC Sampling)
FIIO CONTROL	Yes
SAMPLING RATE INDICATOR	Yes
BLUETOOTH RECEIVE (5.0）	SBC/AAC/aptX/aptX HD/LDAC
INPUT SOURCE INDICATOR	USB IN/COAX IN/OPT IN/BYPASS separate indicator

BUTTON & PORTS

BUTTONS	Physical key + Toggle switch
COAXIAL INPUT	RCA (input/output shared)
OPTICAL INPUT	Optical fiber socket
ANALOG OUTPUT (LO)	RCA
USB	Two-way TYPE C USB2.0 (Charging/Data transmisson)
COAXIAL OUTPUT	RCA (input/output shared)
OPTICAL OUTPUT	Optical fiber socket

POWER SUPPLY

USB POWER

DC5V 2A（recommended）

USB DAC DECODING - LO PARAMETERS

THD+N	＜0.001%(1kHz/10kΩ)
CROSSTALK	≥112dB (1kHz/10kΩ)
FREQUENCY RESPONSE	5Hz~90kHz (-3dB)
SNR	≥118dB
FLOOR NOISE	＜4μV
LO LEVEL	3Vrms (1kHz/10kΩ)

RX MODE(LDAC) - LO PARAMETERS

THD+N	＜0.003%(1kHz/10kΩ)
CROSSTALK	≥110dB (1kHz/10kΩ)
SNR	≥116dB
FLOOR NOISE	＜5μV
LO LEVEL	2.7Vrms (1kHz/10kΩ)

RX MODE(aptX) - LO PARAMETERS

THD+N	＜0.046%(1kHz/10kΩ)
CROSSTALK	≥110dB (1kHz/10kΩ)
SNR	≥116dB
FLOOR NOISE	＜5μV
LO LEVEL	3Vrms (1kHz/10kΩ)

IN THE BOX

BOX CONTENTS	1. FiiO BTA30 Pro
	2. Type-C Cable
	3. RCA Cable
	4. Isolation feet
	5. User Manual
	6. Warranty Card

FAQs

: All FiiO products come with a year warranty. You can simply get in touch with us to claim the warranty.Click here.
: It does not support to be reset. If malfunction happens, unplug and plug the USB cable to restore to normal performance.
: AAC and aptX are Bluetooth codecs that improve the quality of audio that is being transferred wirelessly. To know more, check out this article on Bluetooth codecs.
: The FiiO BTA30 Pro comes with the latest Bluetooth version 5.0.
: It supports SBC, aptX, aptX LL, aptX HD, LDAC, AAC to ensure there are no lags while playing through Bluetooth.
: In TX mode, double press button LL/HD after the device is connected, so to enable aptX LL First. Under this state, other Bluetooth codecs will be disabled except for aptX LL and SBC.
Double press button LL/HD again to disable aptX LL First. Light SYATUS will stay constantly on following the corresponding Bluetooth codec after the device is reconnected. At this time, all supported codecs will be enabled. Short press button LL/HD to successively switch the codec.
: RX (Bluetooth receiving): first connect the BTA30 Pro to Device 1, and hold PAIR1 for about 3s to enter the pairing mode again. On Device 2, search for "BTA30 Pro" and complete the connection. Back to Device 1, select "FiiO BTA30 Pro" in the Bluetooth device list and complete the reconnection. You could also restart the BTA30 Pro after a successful pairing with Device 2, so the BTA30 Pro can be connected to two Bluetooth devices simultaneously.
TX (Bluetooth transmitting): connect the BTA30 Pro to the Bluetooth receiving device, Device 1 (PAIR1 is prior as default), and hold button C for about 3s to enter the pairing state again. The BTA30 Pro will automatically search for Device 2 and start to pair with it.
*When working in LDAC and aptX LL codec in TX mode, the BTA30 Pro cannot be connected to two Bluetooth devices simultaneously.
: Greatly enhanced configuration
1. The XMOS chip easily handles a wide variety of audio formats up to 384kHz/32-bit PCM and native DSD256, allowing you to enjoy it worry-free.
2. Responsible for digital-to-analog conversion is the excellent ES9038Q2M, letting you easily hear every small detail in your music and providing a wider dynamic range than with portable audio products.
3. The strong aluminum alloy body gives the BTA30 Pro luxurious shininess along with a silky-smooth texture, making it a handsome addition to your home.
Greatly enhanced functions
1. New Bypass mode: In DAC mode, Bypass mode makes possible optical input to optical output.When in Bluetooth Transmitting Mode, Bypass mode allows for optical input to optical/Bluetooth output at the same time.
2. New one-button switching between input sources, with the current input source easily distinguished by a readily visible light.
3. Adds LDAC transmitting support in USB input mode.
4. New apTX LL first mode: The aptX LL is supported and prioritized for satisfying low-latency gaming.
5. Under the mode of USB in and Bluetooth out, the volume knob can work.
Optimized Experience
1. Two new buttons allow you to manually choose which of the two Bluetooth devices you want to connect to in Bluetooth transmitting mode.
2. Multiple indicators, work status is clear at a glance
3. The coaxial and USB input support higher sampling rate: The coaxial input supports up to 384kHz/24bit and DSD128. The optical input supports up to 96kHz/24bit. The USB input supports up to 384kHz/32bit and DSD256.
: 1. Power on the BTA30 Pro, make sure that the mode has been switch to 'BT TX'
2. Hold button INPUT or LL/HD buttons for about 3s until Light STATUS flashes alternately in red and blue. Now the BTA30 Pro has entered pairing mode
3. Set the Bluetooth headphone/speaker in pairing mode. The connection will work soon.
*When first power on or restart after clearing the pairing, the BTA30 Pro will enter pairing mode automatically.
: 1. Power on the BTA30 Pro, make sure that the mode has been switch to 'BT RX'
2. Hold button INPUT or LL/HD buttons for about 3s until Light STATUS flashes alternately in red and blue. Now the BTA30 Pro has entered pairing mode
3. Turn on the Bluetooth function in the mobile then search and select the BTA30 Pro to get the connection work.
*When first power on or restart after clearing the pairing, the BTA30 Pro will enter pairing mode automatically.
: 1. It has no internal battery.
2. It can be charged with a 5V adapter, or 5V power supplies of any kind, like the USB of a computer/TV.
3. The Android mobile phones could output and power the BTA30 Pro via USB.
4. The iOS device could not power the BTA30 Pro via USB.
: The BTA30 Pro support DOP in coaxial output, so the DSD signal could output natively and the volume is not adjustable at that time. If you would like to adjust the volume still, please switch the Digital up-sampling option to compatible in the FiiO Control app.

Warranty & Media Reviews

Don't sweat it, this FiiO BTA30 Pro comes with a 1 year warranty from FiiO that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.

Read more about FiiO's warranty in India.

Bluetooth transceiver Award

VGP Award
June, 2021

"BTA30 is the desktop unit with a one antenna at the & has beautiful glassy finish on top back, dual RCA sockets on the back to connect it as a pre/dac to an amplifier of a stereo system."

Read More

"The BTA30 also comes equipped with a 120mhz DSP and it gives the device plenty of processing power. DSP also allows any digital audio signal to be upsampled to 192 kHz."

Read More

"The BTA30 is designed to be a long-range, high-resolution BT transmitter, fitted with a 2dB antenna that you can upgrade to achieve an even higher range."

Read More

"The Digital In & Out's of the BTA30 allows you to connect it to various devices from PC/Laptops,Smartphone’s, up to Gaming Consoles or your TV & Stream the audio to your wireless earphones."

Read More

"The ability to convert any non-Bluetooth digital device to Bluetooth V5.0 with the superior sound quality options of LDAC/aptX HD makes the BTA30 a boon to fans of wireless audio & smart technology."

Read More

"BTA30 has an excellent handcrafting quality in this price range. It has a metal frame, plastic bottom,Plexi top. It looks quite premium & makes a great impression on the desk."

Read More

"I've been looking for a BT transmitter with LDAC to connect my amp to Sony XM4 BT headphones at the best quality when using BT. I found the BTA30,which seems to be the only device on the planet."

Read More

DESCRIPTION

FIIO PRESENT THE ALL-NEW AND UPGRADED BTA30 PRO BLUETOOTH TRANSCEIVER

QUALCOMM AND XMOS CHIPS FOR HIGH-RESOLUTION BLUETOOTH TRANSMISSION

BLUETOOTH 5.0 CONNECTIVITY WITH THREE MODES OF OPERATION FOR EASE OF USE

EMBEDDED WITH SABRE ES9038Q2M DAC CHIP FOR PRISTINE AUDIO REPRODUCTION

OFFERING BYPASS FUNCTIONALITY AND ACCURATE VOLUME ADJUSTMENT

MULTIPLE INPUT CONNECTIVITY OPTIONS WITH DUAL HI-RES CERTIFICATION

BUILT WITH UTMOST PRECISION WITH RGB INDICATOR LIGHT AND A DEDICATED APP

SPECS

FAQs

Warranty & Media Reviews

1 Year Warranty

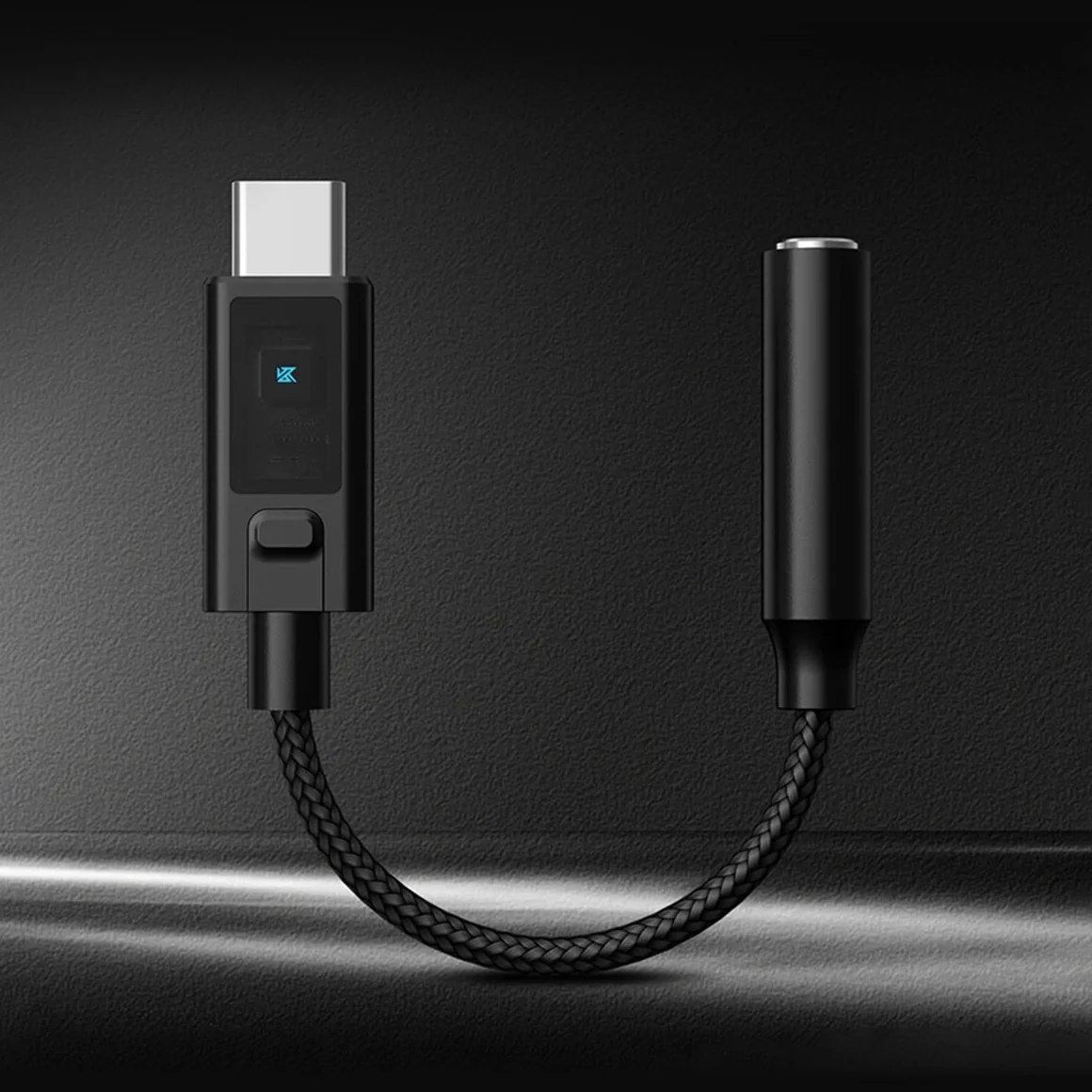

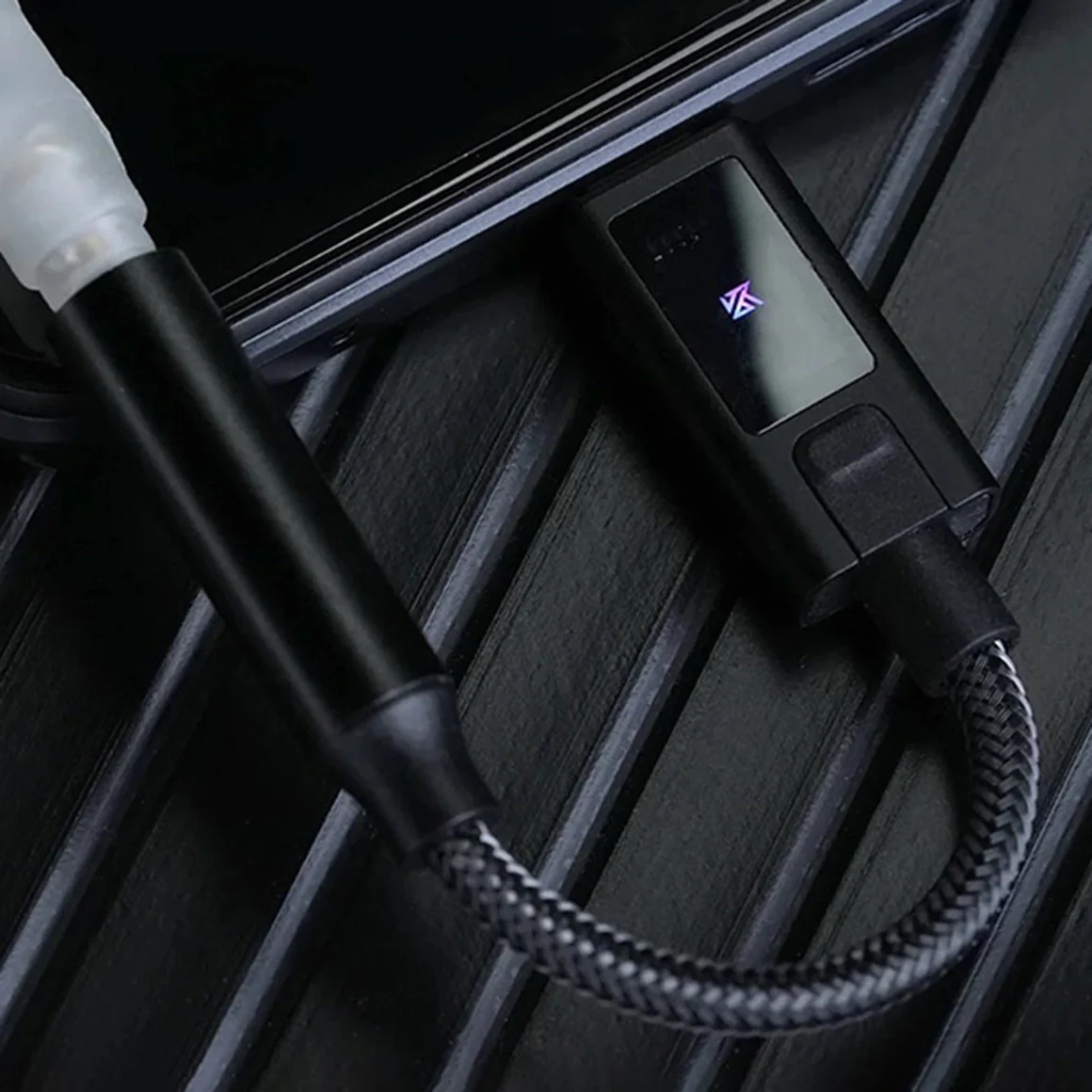

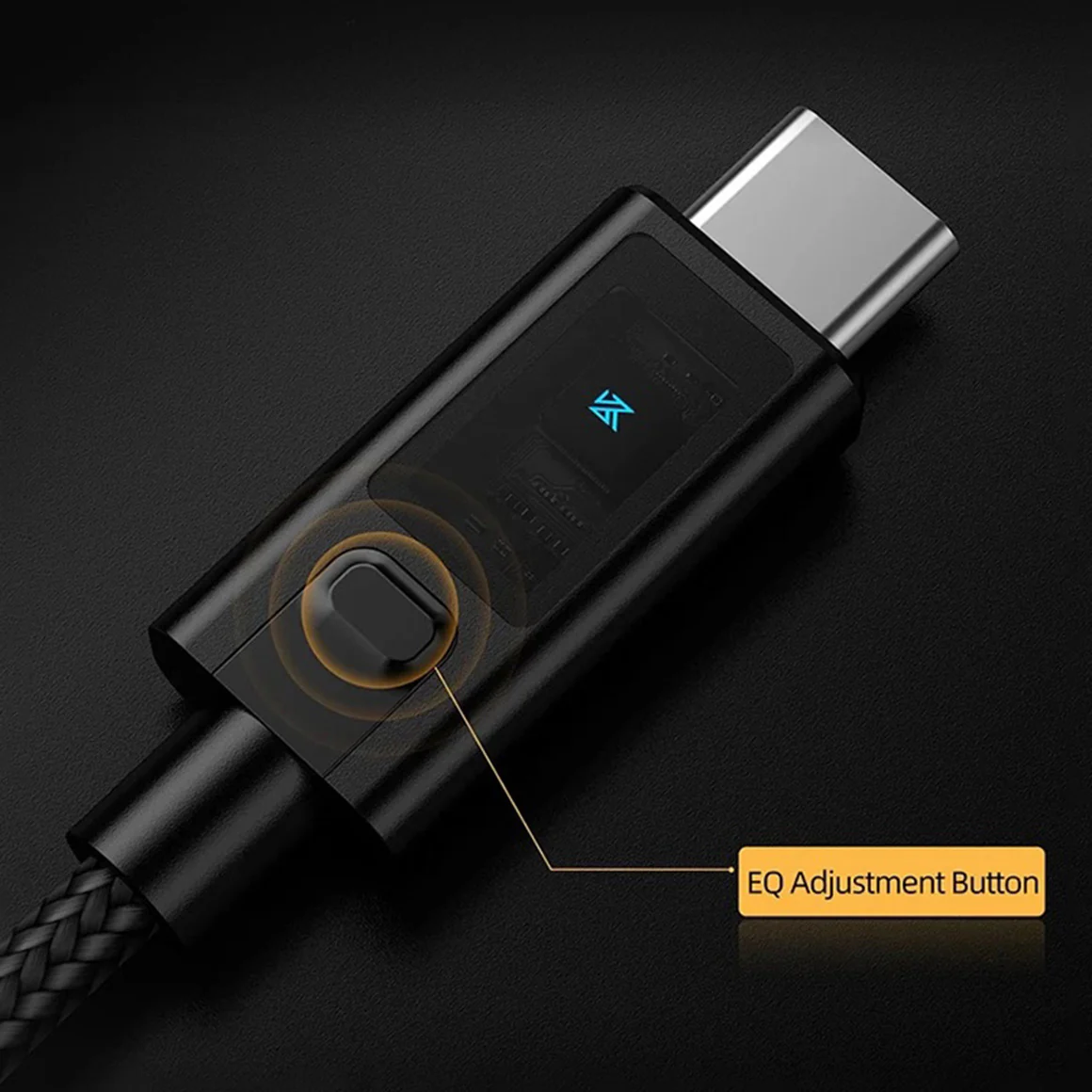

KZ - AM02
