Astell&Kern - A&futura SE180

Astell&Kern - A&futura SE180

Designed in
Korea

1 Year of
Warranty

Ideal for
Audiophiles

Best Suited for
Portable Use

Bluetooth with
LDAC & aptX HD

10.5 Hours of
Battery Life

2.5mm & 4.4mm
Balanced Output

Upto 6Vrms
Power Output

ESS ES9038PRO
DAC Chip

Volume
Controls

256 GB
Internal Memory

Battery Capacity of
3800 mAh

DESCRIPTION

THE FUTURE OF HI-FI MUSIC LISTENING IS HERE WITH THE HIGHLY ADVANCED A&FUTURA SE180

Powered with an interchangeable module, the Astell&Kern A&futura SE180 comes with a powerful ESS ES9038PRO as its default configuration. This 8-channel DAC, which is used primarily in premium home audio equipment, is now a part of the SE180 aiding extended dynamic range and detailed sound. The ability to use different DAC/AMP configurations, tuning and outputs for each module gives you the freedom to pick the right kind of sound for a personalised music listening experience. Pair almost any headphones or IEMs with the A&futura SE180 as they support 2.5mm, 3.5mm and 4.4mm headphones connections.

Headphone-Zone-Astell&Kern-A&futura SE180

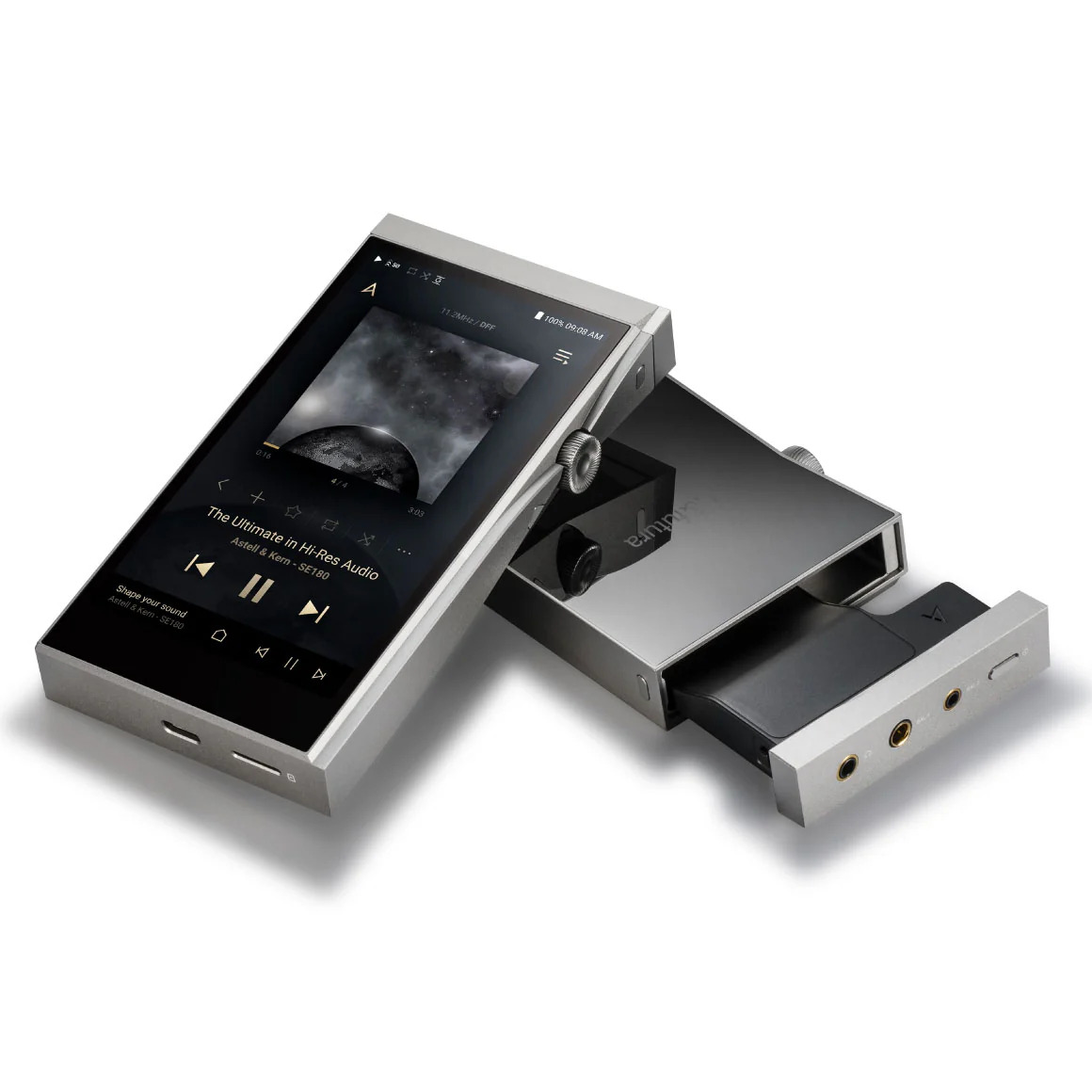

FUTURISTIC DIGITAL AUDIO PLAYER WITH ONE-OF-ITS-KIND INTERCHANGEABLE DAC MODULES

The use of innovative interchangeable DACs gives you a whole new way of exploring premium Hi-Fi sound. This also improves the overall sonic performance of the player. The interchangeable modules are connected to the SE180 using a double-locking mechanism which is different from other products. The first locking structure connects the module to the SE180 while the second locking structure informs you that the module is successfully paired. The internal connectors of the SE180 are spring enabled to ensure a stable audio signal connection and to avoid connection failure, particularly during external shock. The SE180 blocks the power and radio frequency (RF) noise caused by the main unit. This unique and circuit separation structure effectively eliminates the noise leading to a pure music listening experience.

Headphone-Zone-Astell&Kern-A&futura SE180
Headphone-Zone-Astell&Kern-A&futura SE180
Headphone-Zone-Astell&Kern-A&futura SE180

GO BEYOND THE LIMITS OF HI-FI PREMIUM SOUND WITH NEXT-GEN AMP TECHNOLOGY

Breaking all the limitations of previously used amps, the A&futura SE180 features the Next Generation AMP technology to go beyond the acceptable HI-Fi premium sound and to deliver the absolute best. The SE180 has been entirely redesigned to include upgraded OP-AMP parts, circuit design, board layout and enhanced tuning.

Headphone-Zone-Astell&Kern-A&futura SE180

HI-FI WIRELESS SOUND WITH APTX-HD & LDAC CODECS POWERED BY BLUETOOTH 5.0

Get the absolute convenience of listening to music through your headphones wirelessly with Bluetooth 5.0. With support for aptX HD and LDAC, you can listen to audiophile-grade high-quality sound on your SE180. Enjoy your music in original master recording format with the SE180 as it is compatible with MQA (Master Quality Authenticated) playback. Get real-time updates about the volume level and current bit rate directly on the LED volume wheel of the SE180.
SE180

Headphone-Zone-Astell&Kern-A&futura SE180
Headphone-Zone-Astell&Kern-A&futura SE180

TRANSFER MUSIC FILES WIRELESSLY IN NO TIME OR PLAY MUSIC DIRECTLY FROM YOUR SMARTPHONE

Transferring files has never been this easy. With the all-new AK File Drop function, you can conveniently transfer files wirelessly from your PC, smartphone or an FTP program located device to your SE180. If you want to play music from an external device without having to transfer files, you can use the newly introduced BT Sync function. This function allows play music by pairing an external device, the smartphone, to your SE180 via Bluetooth.

Headphone-Zone-Astell&Kern-A&futura SE180
Headphone-Zone-Astell&Kern-A&futura SE180

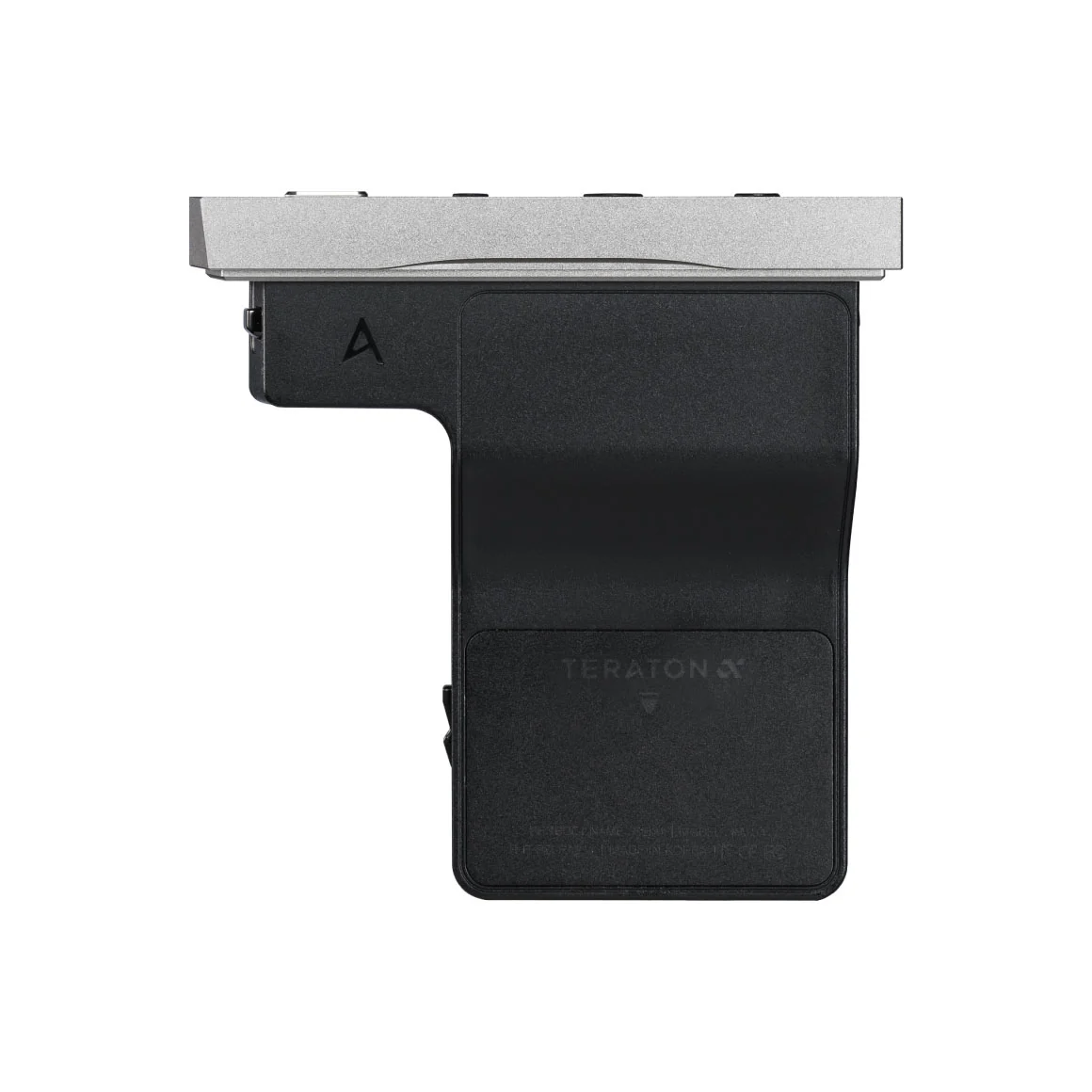

FIRST-EVER DAP WITH THE INNOVATIVE & POWER-EFFICIENT TERATON ALPHA TECHNOLOGY

It is for the first time that a Digital Audio Player is featuring the TERATON ALPHA audio technology. This technology aids the Astell&Kern A&futura SE180 to offer efficient power consumption and amplification and block power noise. This happens right at the audio output interface stage where the digital-to-analogue signal conversion takes place. TERATON ALPHA consists of Astell&Kern's patented technologies that are developed after extensive research and development to deliver a sound closer to how artists intend their music to sound.

Headphone-Zone-Astell&Kern-A&futura SE180
Headphone-Zone-Astell&Kern-A&futura SE180

NEWLY UPGRADED USER INTERFACE FOR AN ANDROID-LIKE SEAMLESS EXPERIENCE

With an all-new upgraded user interface, the A&futura SE180 intends to offer a seamless user experience similar to that of an Android smartphone. Within the new interface, you will find a fresh navigation bar right at the bottom of the screen that lets you control playback and skip tracks even when you are swiping through screens.

Headphone-Zone-Astell&Kern-A&futura SE180

STUNNING 5-INCH HD SCREEN FOR A VIBRANT AND CRISP DISPLAY

From the album artwork comes to life on the screen of the Astell&Kern A&futura SE180 as it comes with a stunning HD screen. With a 5-inch touchscreen display having a 1920x1080 pixel resolution, you get up to 16.7 million colours and 441 PPI (Pixels Per Inch). This makes for a vibrant, clean and sharp user interface.

Headphone-Zone-Astell&Kern-A&futura SE180
Headphone-Zone-Astell&Kern-A&futura SE180

AN ART-CENTRIC ELEGANT DESIGN THAT REPRESENTS HIGH-QUALITY CRAFTSMANSHIP

The design of the A&futura SE180 depicts the traces of the wind, while the flowing lines on its body indicate great tunes that are vital for an immersive listening experience. The key element in the design of the SE180 is the smooth yet expanding silhouette. The continuous outline on the exterior shows the limitless possibility of tonal scalability. You can find the volume knob button at the centre of the curves while a single multi-function button is on the left for efficient one-hand use. The ceramic rear cover, used in the A&futura SE180 implicates a finely crafted art sculpture. Every audio output on this device including, 2.5mm, 3.5mm and 4.4mm connectors, comes with gold rings.

Headphone-Zone-Astell&Kern-A&futura SE180

SPECS

GENERAL SPECIFICATIONS
MODEL A&futura SE180
BODY COLOR Moon Silver
BODY MATERIAL Aluminum
DISPLAY 5-inch, 1920x1080 FHD Touch Display
SUPPORTED AUDIO FORMATS WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA
MQA PALYBACK Services (Tidal Masters), Local files, external USB, MQA-CD (ripped)
INPUT USB Type-C input (for charging PC & MAC)
CHARGING 9V 1.67A/5V 2A
WI-FI 802.11 b/g/n (2.4GHz)
BLUETOOTH V5.0 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC)
DIMENSIONS 3.03"(77mm)[W] x 5.09"(129.2mm)[H] x 0.78"(19.9mm)[D] (Only body)
3.03"(77mm)[W] x 5.4"(137.2mm)[H] x 0.78"(19.9mm)[D] (Combined with a module
WEIGHT 9.88 oz (280g)
FEATURE ENHANCEMENTS Firmware upgrades supported (OTA)
SAR Body 10g SAR (W/Kg)_WLAN 2.4Ghz: 0.016
WHEEL LED light (LED Indicator)
BATTERY
CAPACITY 3,800mAh 3.8V Li-Polymer Battery
CHARGE TIME About 5 hours (Standard: 5V / 2A Charging), about 3 hours
(Fast: 9V / 1.67A Charging)
MEMORY
BUILT IN MEMORY 256GB (NAND)
EXTERNAL MEMORY microSD (Max. 1TB) x1
OS
SUPPORTED OS Windows 7,8,10 (32/64bit), MAC OS X 10.7 and up
CLOCK SOURCE
CLOCK JITTER 25ps(Typ)
REFERENCE CLOCK JITTER 800 Femto Seconds
SEM1 SPECIFICATION
MODEL SEM1
BODY COLOR Moon Silver
BODY MATERIAL Aluminum, Stainless steel, Polycarbonate
SAMPLE RATE PCM: 8kHz ~ 384kHz (8/16/24/32bits per Sample) DSD
Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo
OUTPUT LEVEL [Normal Gain] Unbalanced 2Vrms / Balanced 4Vrms (Condition No Load)
[High Gain] Unbalanced 3Vrms / Balanced 6Vrms (Condition No Load)
DAC ESS ES9038PRO (Single DAC)
DECODING Support up to 32bit / 384kHz Bit-to-Bit Playback
DIMENSIONS 3.03"(77mm)[W] x 2.99"(76mm)[H] x 0.78"(19.9mm)[D] (Only body)
WEIGHT 3.53 oz (100g)
PLAYBACK TIME Above 10.5hours (FLAC, 16bit, 44.1kHz, Vol.50, LCD off)
AUDIO PERFORMANCE
FREQUENCY RESPONSE ±0.04dB (Condition: 20Hz~20kHz) Unbalanced /
±0.04dB (Condition: 20Hz~20kHz) Balanced
±0.07dB (Condition: 20Hz~70kHz) Unbalanced /
±0.06dB (Condition: 20Hz~70kHz) Balanced
SIGNAL TO NOISE RATIO [Normal Gain] 122dB @ 1kHz, Unbalanced / 126dB @ 1kHz, Balanced
[High Gain] 125dB @ 1kHz, Unbalanced / 129dB @ 1kHz, Balance
CROSSTALK [Normal Gain] -138dB @ 1kHz, Unbalanced / -145dB @ 1kHz, Balanced
[High Gain] -138dB @ 1kHz, Unbalanced / -147dB @ 1kHz, Balanced
THD+N [Normal Gain] 0.0005% @ 1kHz, Unbalanced / 0.0004% @ 1kHz, Balanced
[High Gain] 0.0007% @ 1kHz, Unbalanced / 0.0006% @ 1kHz, Balanced
IMD SAMPTE 0.0003% 800Hz 10kHz (4:1) Unbalanced /
0.0003% 800Hz 10kHz (4:1) Balanced
OUTPUT IMPEDANCE 3.5mm (1ohm) / 2.5mm (1.5ohm) / 4.4mm (1.5ohm)
IN THE BOX
BOX CONTENTS 1. Astell&Kern A&futura SE180
2. 1 x SEM1 ESS ES9038PRO DAC module
3. 1 x USB-C to USB-A cable (1 metre)
4. 3 x screen protectors
5. 1 x Quick start guide


Headphone-Zone-Astell&Kern-A&futura SE180

COMPARISONS

Astell&Kern - A&futura SE180 vs competitors
Astell&Kern - A&futura SE180
₹ 1,24,999/-₹ 1,49,999

Astell&Kern - A&norma SR25 vs competitors
Astell&Kern - A&norma SR25
₹ 54,990/-₹ 69,990

Astell&Kern - KANN ALPHA vs competitors
Astell&Kern - KANN ALPHA
₹ 99,999/-₹ 1,09,999

Astell&Kern - A&futura SE200 vs competitors
Astell&Kern - A&futura SE200
₹ 1,34,990/-₹ 1,64,990

DAC Chip 1x ESS ES9038PRO 2x Cirrus Logic CS43198 2x ESS ES9068AS 1x AKM AK4499EQ &
2x ESS ES9068AS
CPU Octa-Core Quad-Core Quad-Core Octa-Core
Screen Size 5" FHD 3.6" LCD 4.1" HD Screen 5" LCD
Sample Rate PCM : 8kHz ~ 384kHz (8/16/24/32bits Per Sample) /
DSD Native: DSD64(1bit 2.8MHz), Stereo /
DSD128(1bit 5.6MHz), Stereo /
DSD256(1bit 11.2MHz), Stereo
PCM : 8kHz ~ 384kHz (8/16/24/32bits Per Sample) /
DSD Native: DSD64(1bit 2.8MHz), Stereo /
DSD128(1bit 5.6MHz), Stereo /
DSD256(1bit 11.2MHz), Stereo
PCM : 8kHz ~ 384kHz (8/16/24/32bits Per Sample) /
DSD Native: DSD64(1bit 2.8MHz), Stereo /
DSD128(1bit 5.6MHz), Stereo /
DSD256(1bit 11.2MHz), Stereo
PCM : 8kHz ~ 384kHz (8/16/24/32bits Per Sample) /
DSD Native: DSD64(1bit 2.8MHz), Stereo /
DSD128(1bit 5.6MHz), Stereo /
DSD256(1bit 11.2MHz), Stereo
Battery Life 10.5 Hours 21 Hours 14.5 Hours 10 Hours
Balanced Outputs 2.5 mm & 4.4 mm Bal Output 2.5 mm Bal. Output 2.5 mm & 4.4 mm of Bal Output 2.5 mm Bal Output
USB Interface Type-C, Micro USB Type-C, Micro USB Type-C, Micro USB Type-C, Micro USB
Internal Storage 256 GB 64 GB 65 GB 256 GB
External Storage MicroSD (Max. 1TB) X1 MicroSD (Max. 1TB) X1 MicroSD (Max. 1TB) X1 MicroSD (Max. 1TB) X1
Output Power Upto 6Vrms Power Output Upto 4.0 Vrms Power Output Upto 12Vrms Power Output Upto 6Vrms Power Output
Bluetooth Version V5.0 V4.2 V5.0 V4.2
Bluetooth Codecs (A2DP, AVRCP, Qualcomm® AptX™ HD, LDAC) (A2DP, AVRCP, AptXTM HD, LDAC) (A2DP, AVRCP, Qualcomm® AptX™ HD, LDAC) (A2DP, AVRCP, AptXTM HD)
WiFi
Tidal Streaming
Downloadable Apps
MQA Support
Inputs USB Type-C Input (For Charging PC & MAC) USB Type-C Input (For PC & MAC) USB Type-C Input (For Charging PC & MAC) USB Type-C Input (For PC & MAC)
In The Box 1. Astell&Kern A&Futura SE180
2. 1 X SEM1 ESS ES9038PRO DAC Module
3. 1 X USB-C To USB-A Cable (1 Metre)
4. 3 X Screen Protectors
5. 1 X Quick Start Guide
1. Astell&Kern - A&Norma SR25 Digital Audio Player
2. USB Type-C Cable X 1
3. MicroSD Card Slot Cover X 2
4. Protective Film (Front X 2, Back X 2)
5. Quick Start Guide X 1
6. Warranty Card X 1
1. Astell&Kern KANN ALPHA Digital Audio Player
2. USB Type-C Cable X 1
3. Quick Start Guide X 1
4. Warranty Card X 1
5. MicroSD Card Slot Cover X 2
6. Protective Film (Front X 2, Back X 2)
1. Astell&Kern A&Futura SE200
2. USB Type-C Cable
3. Quick Start Guide
4. Warranty Card
5. 2x MicroSD Card Slot Cover
6. Protective Film (2x Front, 2x Back)
Expert Verdict The newly introduced BT Sink function connects the SE180 to an external device, such as your smartphone, via BT, enabling you to take advantage of the A&K's DAC while playing from your phone's library."
Steronet
"The SR25’s design blends aesthetics with user convenience and features an aluminium body that suppresses noise and improves sound quality."
AVS FORUM
The battery will outlast a road-trip, the power handling is glorious, and the stylish, rock-solid build is (just about) small enough to take with you on your travels."
WHAT HI FI
"The SE200 is a world first in that it features two audiophile-calibre Sabre ESS9068AS DACs (in a dual DAC configuration), alongside a single AKM4499EQ (last seen in the flagship SP2000)."
Trusted Reviews

FAQS

DOWNLOADS

  • SE180 User Manual


  • SE1800 USB DAC Driver


  • Driver File: SE180 USB DAC Driver


  • Notes


  • 1. This is an integrated USB Audio driver for AK Devices. The previous USB DAC driver will need to be deleted from the AK Device prior to installing the new driver. To delete the previous driver, connect the AK Device to the computer and the previous driver can be located in the "Contents" folder.
  • 2. This driver is for Windows 7/8/8.1/10 (32/64bit). For MAC OS, the driver is automatically recognized without needing to be manually installed.
  • 3. Once the driver is installed for Windows PC, the device will be recognized automatically.
  • 4. To use the AK Device USB Audio as the default device, you may need to change the default output device option in the computer's Settings Menu.
  • 5. For high quality sound playback on Windows PC, it is recommended to change the default format to 24-bit, 192000Hz" for the AK Device in the Control Panel - Sound menu.
  • 6. For Native DSD playback, the music playback program must also be capable of Native DSD playback. Depending on the music playback program, you may need to change the audio device to AK Device USB Audio in Settings menu.
  • 7. For more information on using USB Audio, please refer to the AK Device's product manual.


  • How to Install the Driver


  • 1. Click the Driver File link above to download the USB DAC driver for your Windows computer. After running "setup.exe" file, click the [Next >] button. puter and the previous driver can be located in the "Contents" folder.
  • 2. The installer will display the path of the driver to be installed.
  • 3. Click the [Install] button in the installer to complete the installation.
  • 4. When the installation is complete, the AK Device's USB DAC device driver is automatically installed. Click [Next >] --> [Finish] button of the installer to complete the installation.
  • 5. Connect the AK Device in USB DAC mode to listen to music.
  • Warranty & Media Reviews

    1 Year Warranty

    Don't sweat it, this Astell&Kern A&futura SE180 comes with a 1 year warranty from Astell&Kern that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.

    Read more about Astell&Kern's warranty in India.

    IGN Awards

    Best portable music player over £1000

    What HiFi
    Oct, 2021

    The Verge

    "The newly introduced BT Sink function connects the SE180 to an external device, such as your smartphone, via BT, enabling you to take advantage of the A&K's DAC while playing from your phone's library."

    Read More
    Headfonia

    "Both modules support 2.5mm, 3.5mm and 4.4mm headphones connections for accommodating a greater variety of headphones, while there is support for MQA playback via downloaded MQA audio files and Tidal."

    Read More
    What Hi-Fi

    "The A&futura SE180 is the first model to boast Astell&Kern’s Teraton Alpha Sound Solution technology. This is designed for deliver audio playback close to the original sound."

    Read More
    Inner Fidelity

    "A&futura SE180 has 256GB onboard memory that can be expanded up to 1TB by using the microSD card slot, meaning users can carry thousands of hi-res albums at all times."

    Read More
    $847.81
    Astell&Kern - A&futura SE180
    $847.81

    More Images

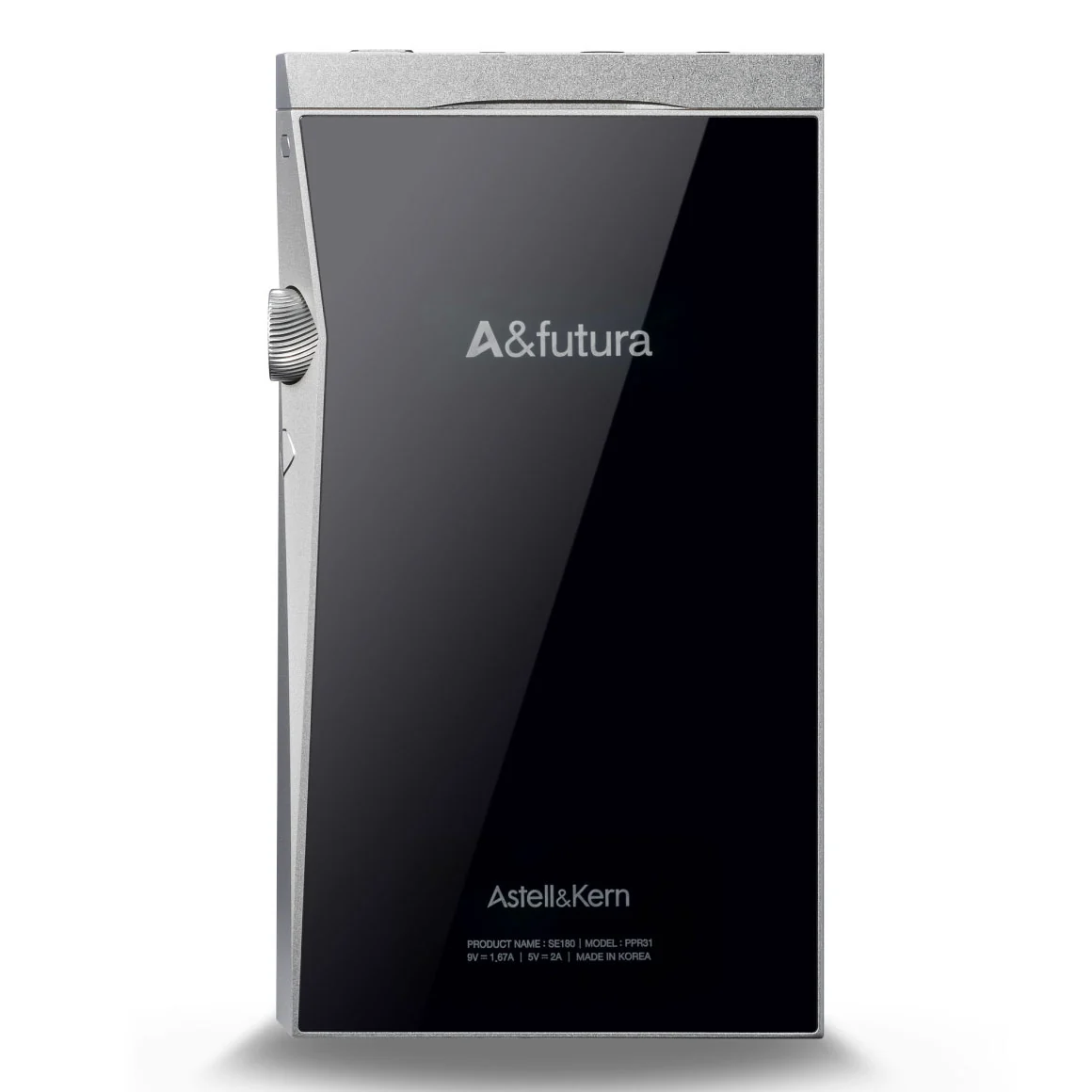

    Astell&Kern - A&futura SE180 - Image 2

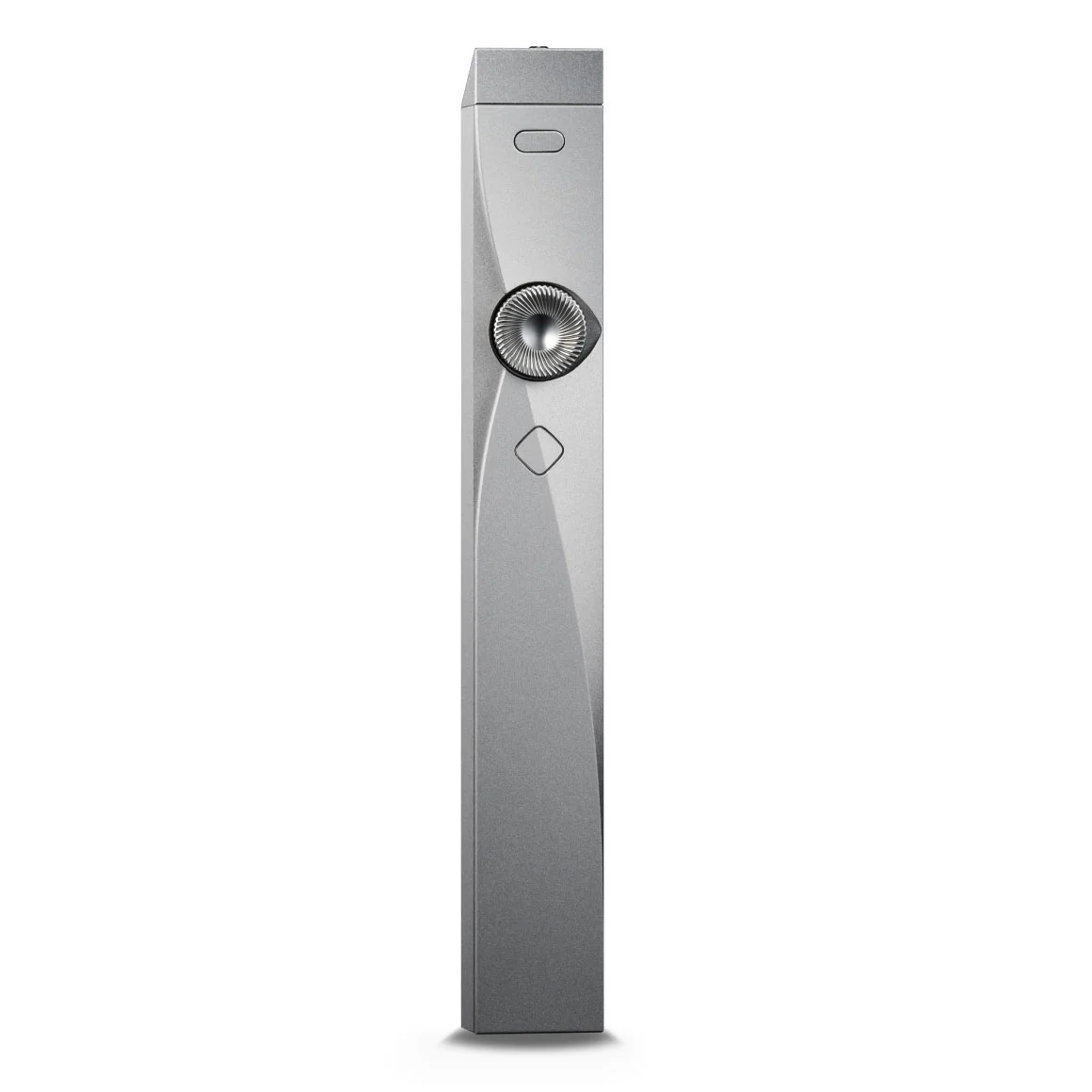

    Astell&Kern - A&futura SE180 - Image 3

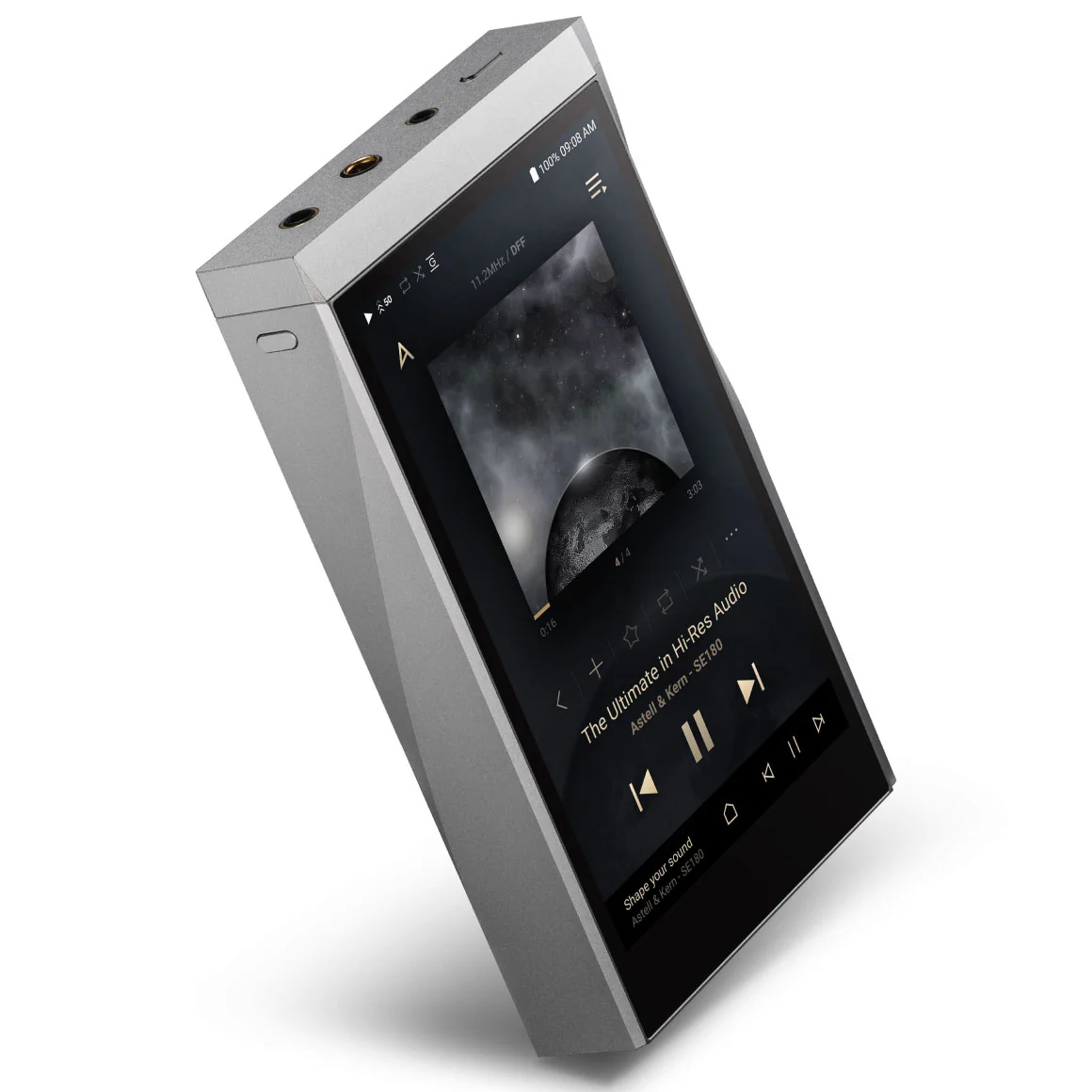

    Astell&Kern - A&futura SE180 - Image 4

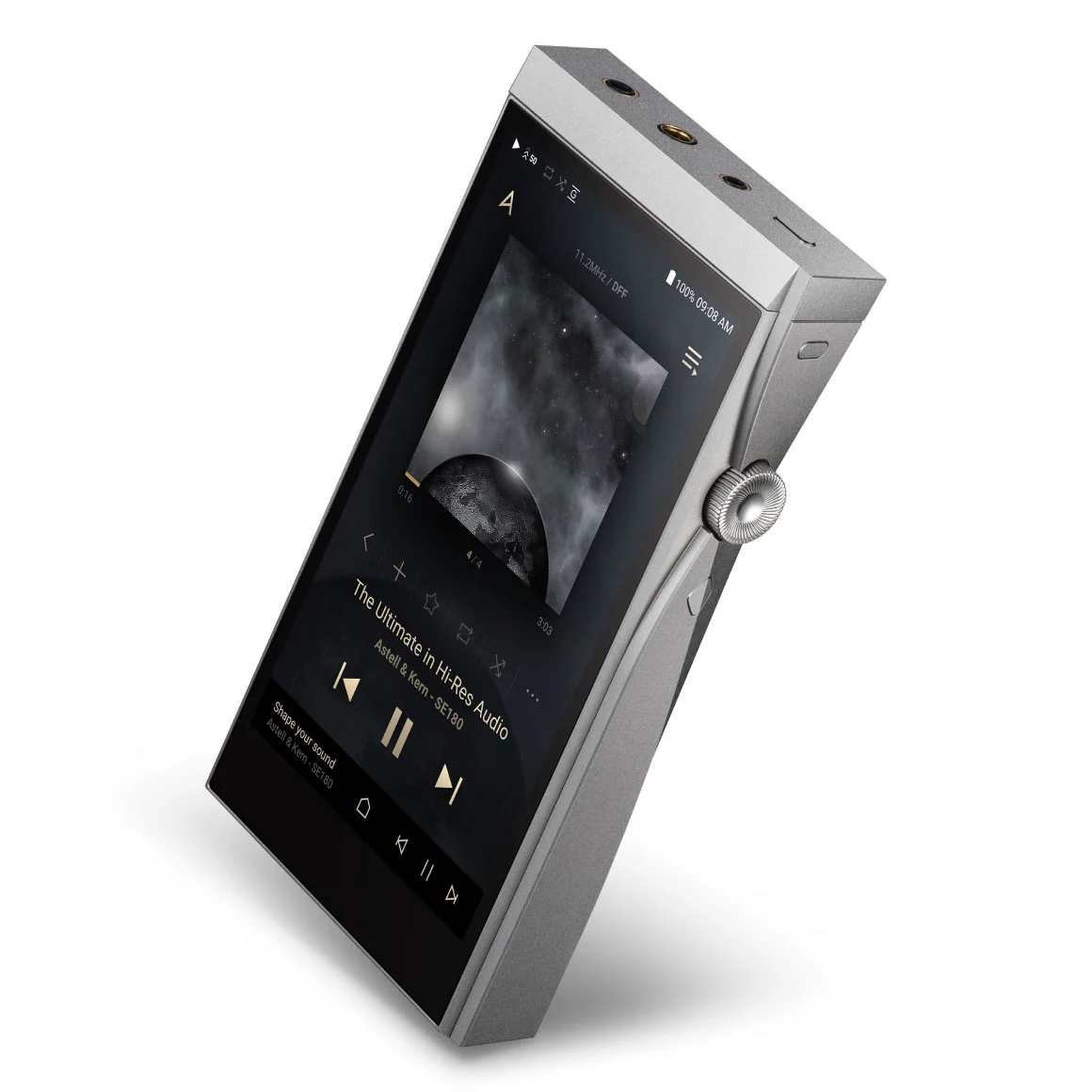

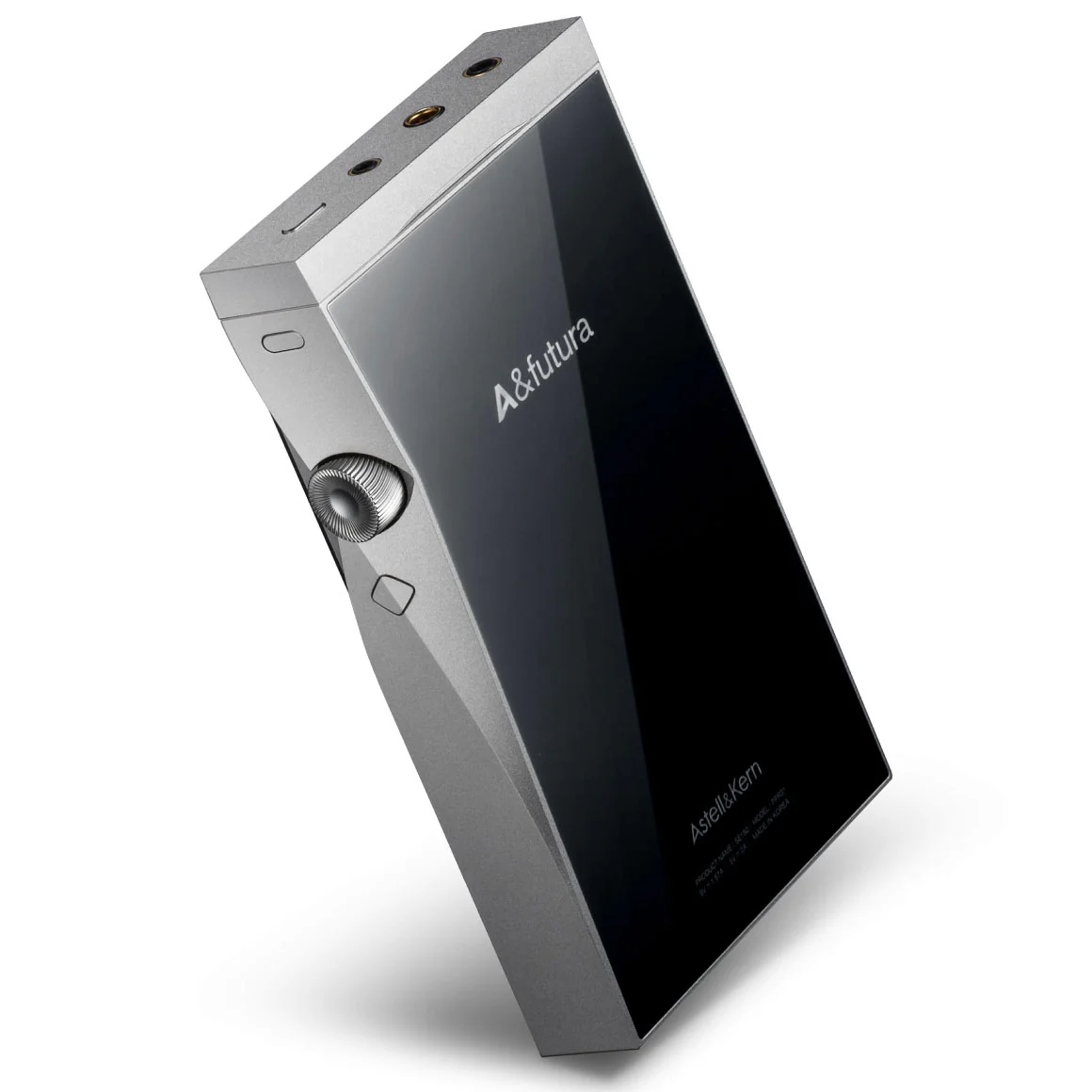

    Astell&Kern - A&futura SE180 - Image 5

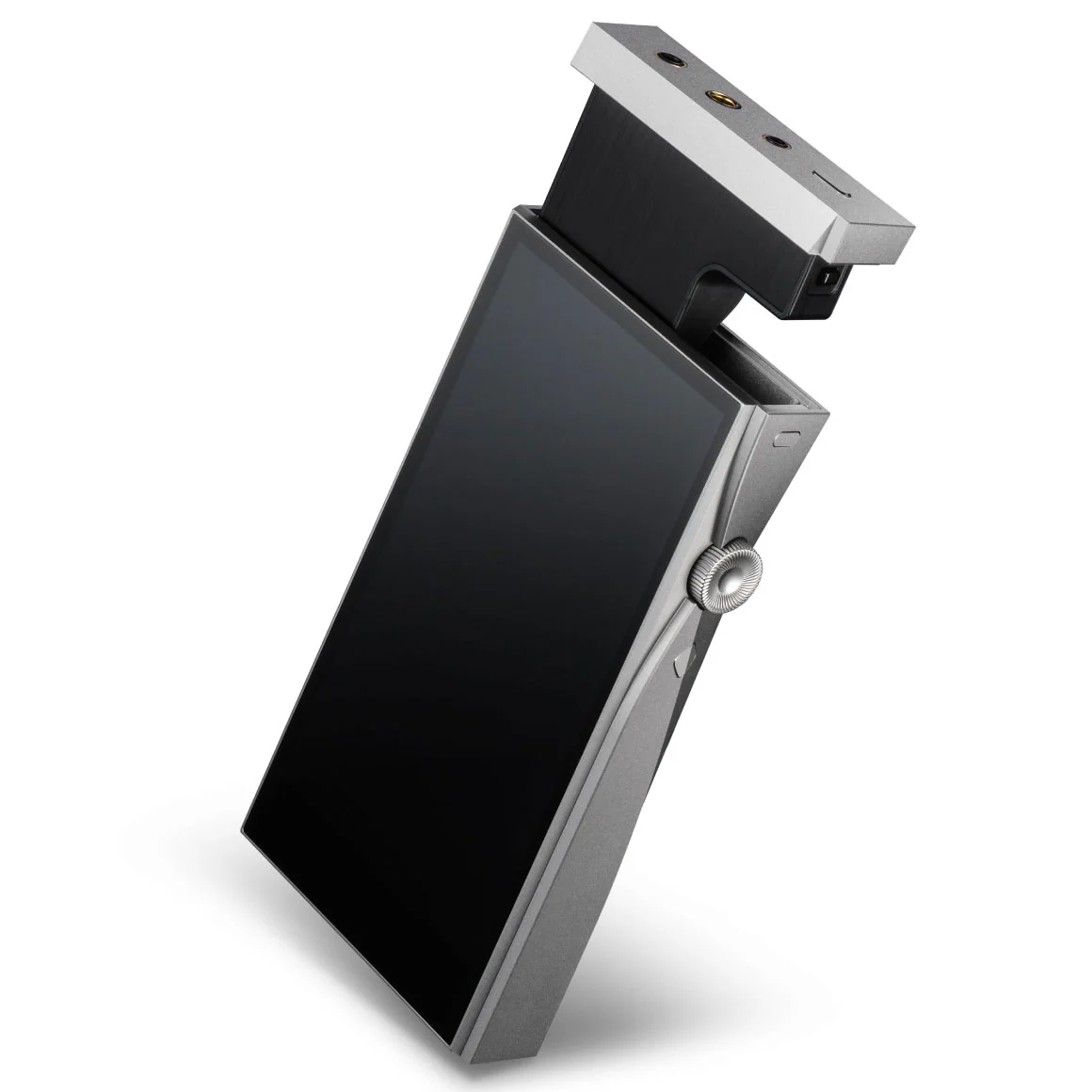

    Astell&Kern - A&futura SE180 - Image 6

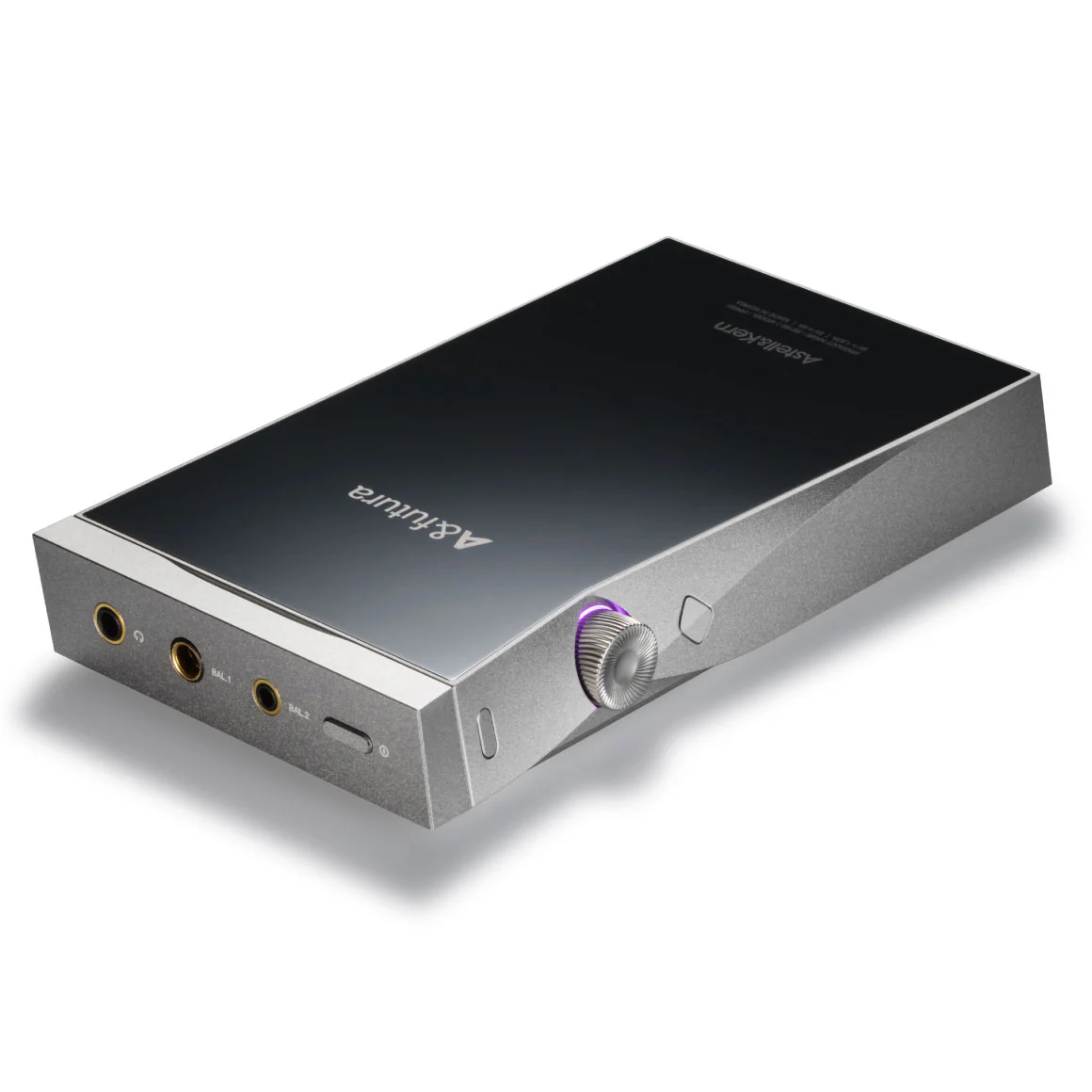

    Astell&Kern - A&futura SE180 - Image 7
    Astell&Kern - A&futura SE180 - Image 8

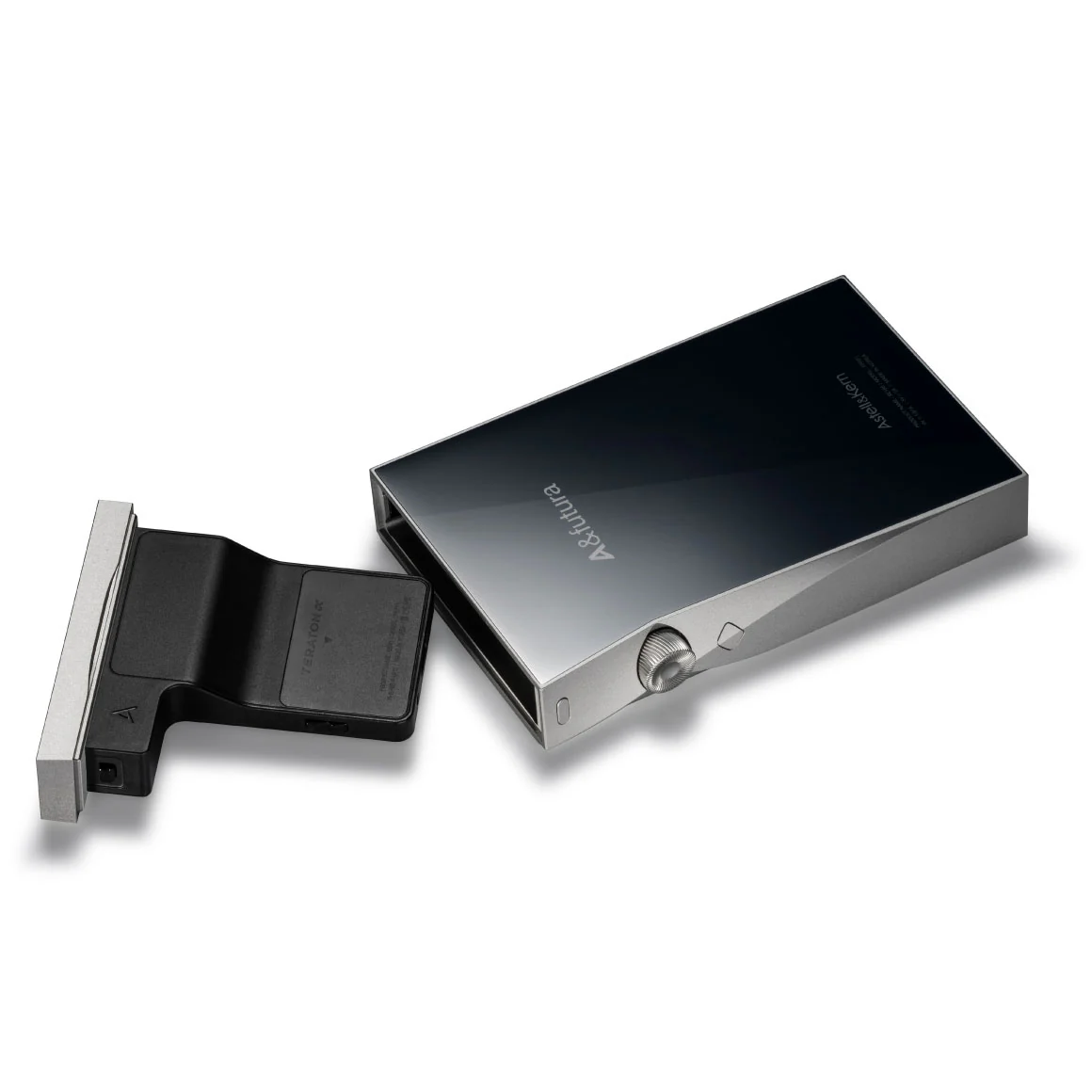

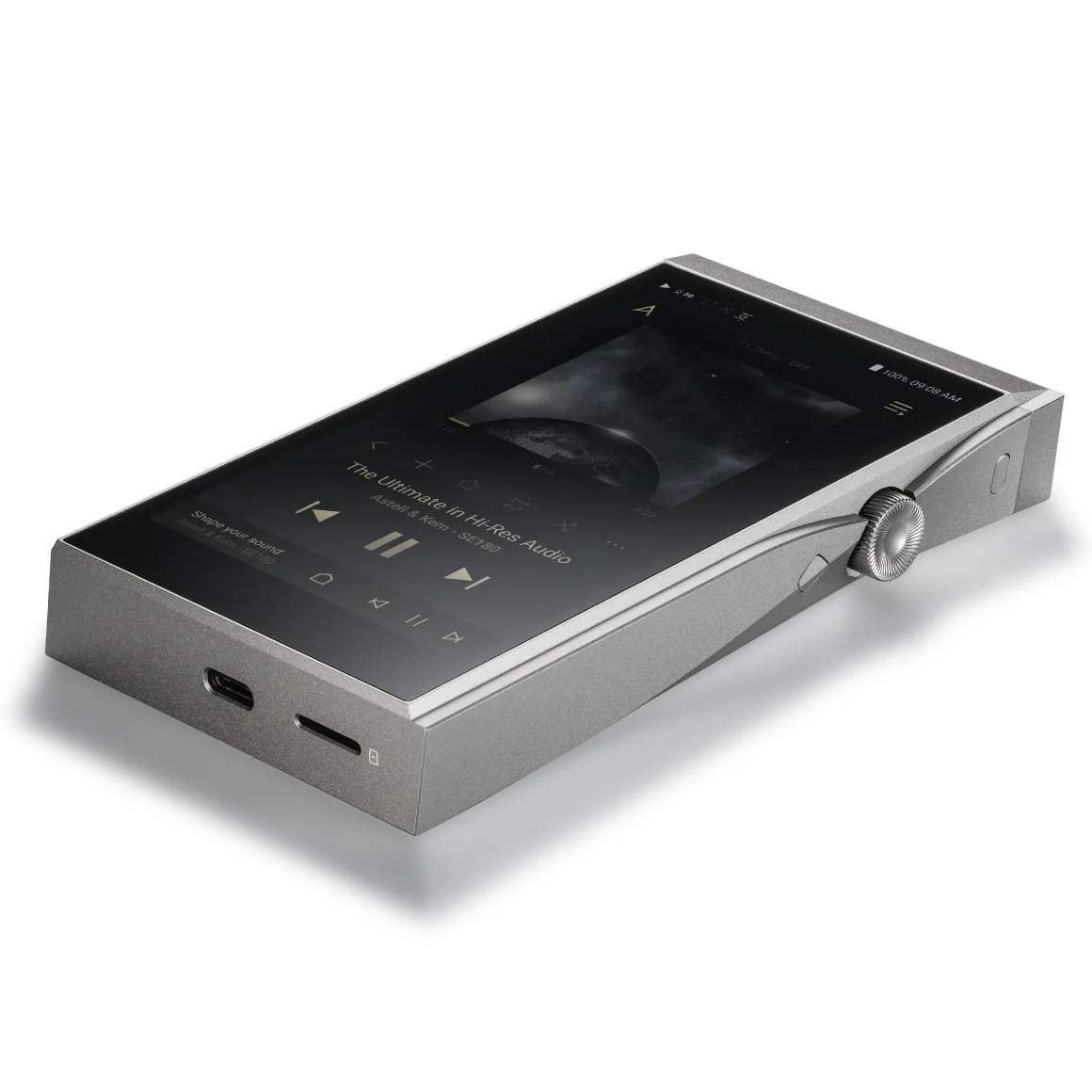

    Astell&Kern - A&futura SE180 - Image 9

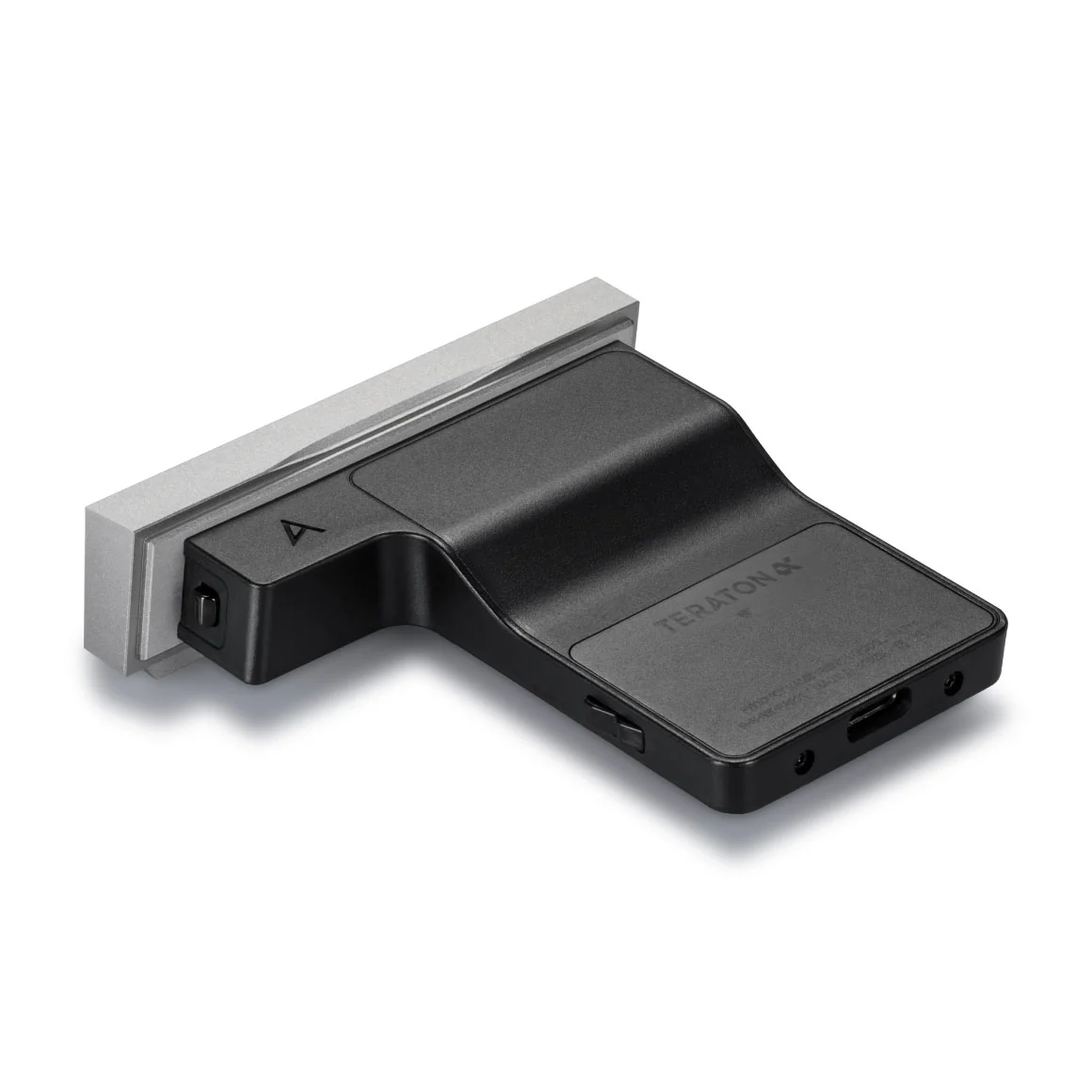

    Astell&Kern - A&futura SE180 - Image 10

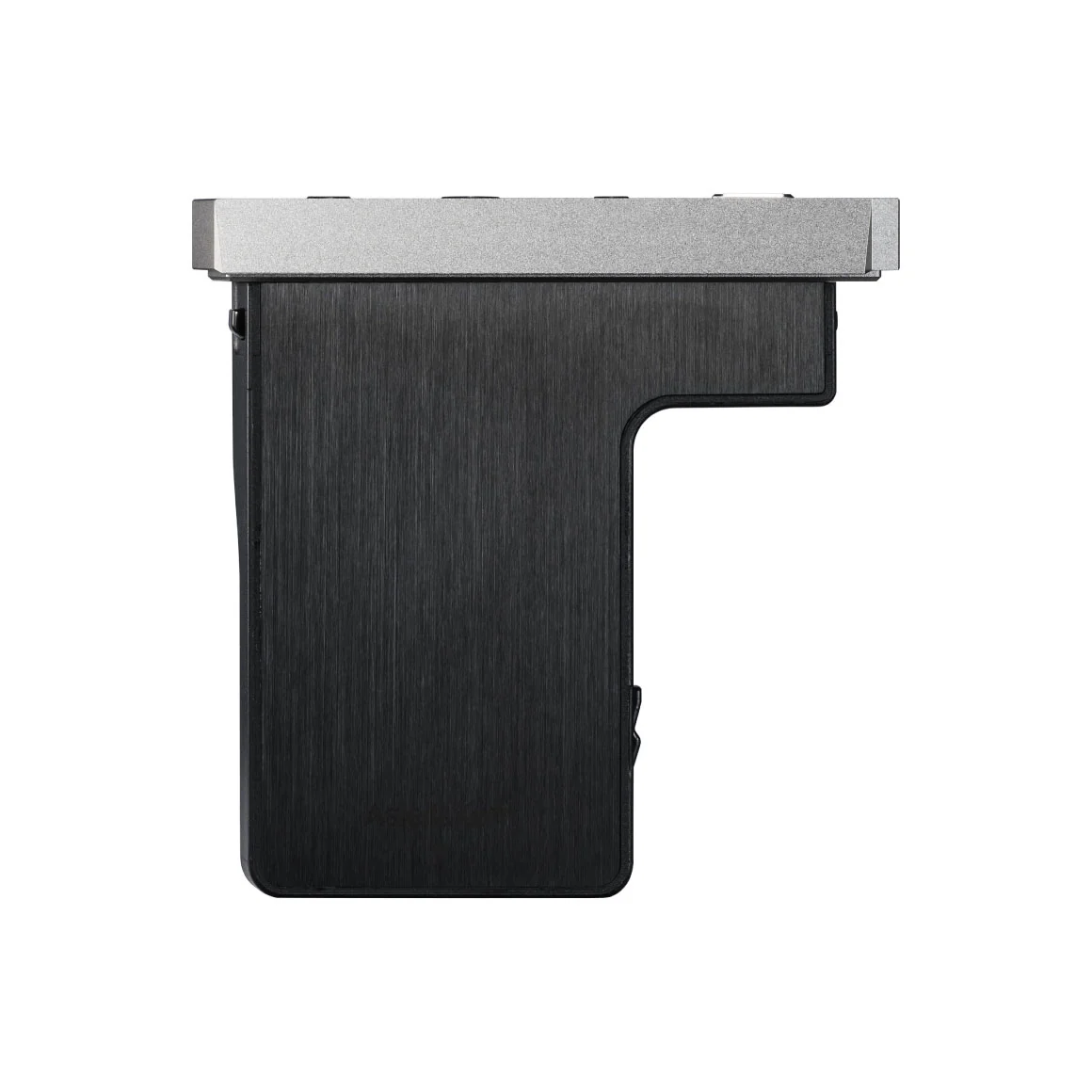

    Astell&Kern - A&futura SE180 - Image 11
    Astell&Kern - A&futura SE180 - Image 12
    Astell&Kern - A&futura SE180 - Image 13

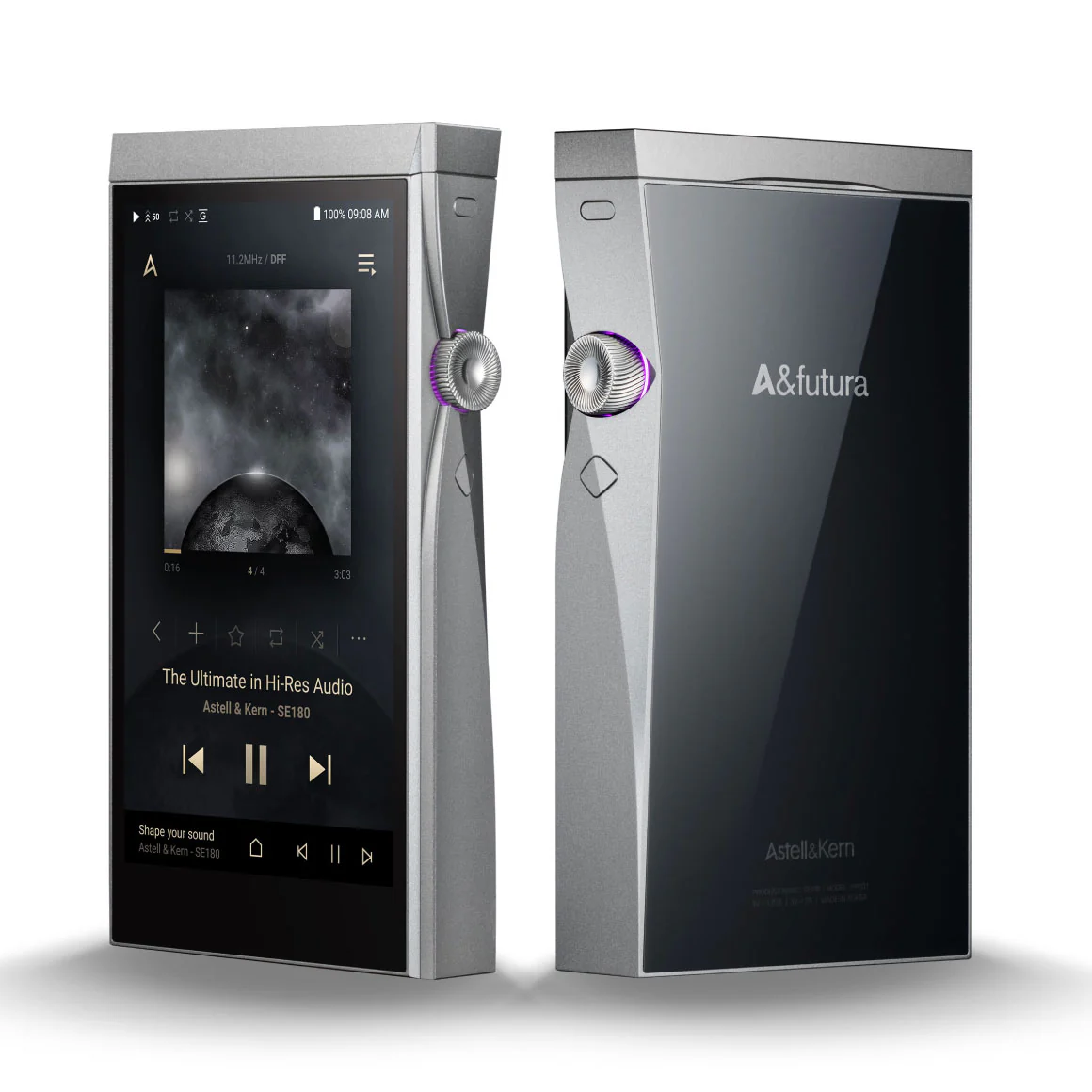

    Astell&Kern - A&futura SE180 - Image 14
    Astell&Kern - A&futura SE180 - Image 15
    Astell&Kern - A&futura SE180 - Image 16

    Astell&Kern - A&futura SE180

    Designed in
    Korea

    1 Year of
    Warranty

    Ideal for
    Audiophiles

    Best Suited for
    Portable Use

    Bluetooth with
    LDAC & aptX HD

    10.5 Hours of
    Battery Life

    2.5mm & 4.4mm
    Balanced Output

    Upto 6Vrms
    Power Output

    ESS ES9038PRO
    DAC Chip

    Volume
    Controls

    256 GB
    Internal Memory

    Battery Capacity of
    3800 mAh

    DESCRIPTION

    THE FUTURE OF HI-FI MUSIC LISTENING IS HERE WITH THE HIGHLY ADVANCED A&FUTURA SE180

    Powered with an interchangeable module, the Astell&Kern A&futura SE180 comes with a powerful ESS ES9038PRO as its default configuration. This 8-channel DAC, which is used primarily in premium home audio equipment, is now a part of the SE180 aiding extended dynamic range and detailed sound. The ability to use different DAC/AMP configurations, tuning and outputs for each module gives you the freedom to pick the right kind of sound for a personalised music listening experience. Pair almost any headphones or IEMs with the A&futura SE180 as they support 2.5mm, 3.5mm and 4.4mm headphones connections.

    Headphone-Zone-Astell&Kern-A&futura SE180

    FUTURISTIC DIGITAL AUDIO PLAYER WITH ONE-OF-ITS-KIND INTERCHANGEABLE DAC MODULES

    The use of innovative interchangeable DACs gives you a whole new way of exploring premium Hi-Fi sound. This also improves the overall sonic performance of the player. The interchangeable modules are connected to the SE180 using a double-locking mechanism which is different from other products. The first locking structure connects the module to the SE180 while the second locking structure informs you that the module is successfully paired. The internal connectors of the SE180 are spring enabled to ensure a stable audio signal connection and to avoid connection failure, particularly during external shock. The SE180 blocks the power and radio frequency (RF) noise caused by the main unit. This unique and circuit separation structure effectively eliminates the noise leading to a pure music listening experience.

    Headphone-Zone-Astell&Kern-A&futura SE180
    Headphone-Zone-Astell&Kern-A&futura SE180
    Headphone-Zone-Astell&Kern-A&futura SE180

    GO BEYOND THE LIMITS OF HI-FI PREMIUM SOUND WITH NEXT-GEN AMP TECHNOLOGY

    Breaking all the limitations of previously used amps, the A&futura SE180 features the Next Generation AMP technology to go beyond the acceptable HI-Fi premium sound and to deliver the absolute best. The SE180 has been entirely redesigned to include upgraded OP-AMP parts, circuit design, board layout and enhanced tuning.

    Headphone-Zone-Astell&Kern-A&futura SE180

    HI-FI WIRELESS SOUND WITH APTX-HD & LDAC CODECS POWERED BY BLUETOOTH 5.0

    Get the absolute convenience of listening to music through your headphones wirelessly with Bluetooth 5.0. With support for aptX HD and LDAC, you can listen to audiophile-grade high-quality sound on your SE180. Enjoy your music in original master recording format with the SE180 as it is compatible with MQA (Master Quality Authenticated) playback. Get real-time updates about the volume level and current bit rate directly on the LED volume wheel of the SE180.
    SE180

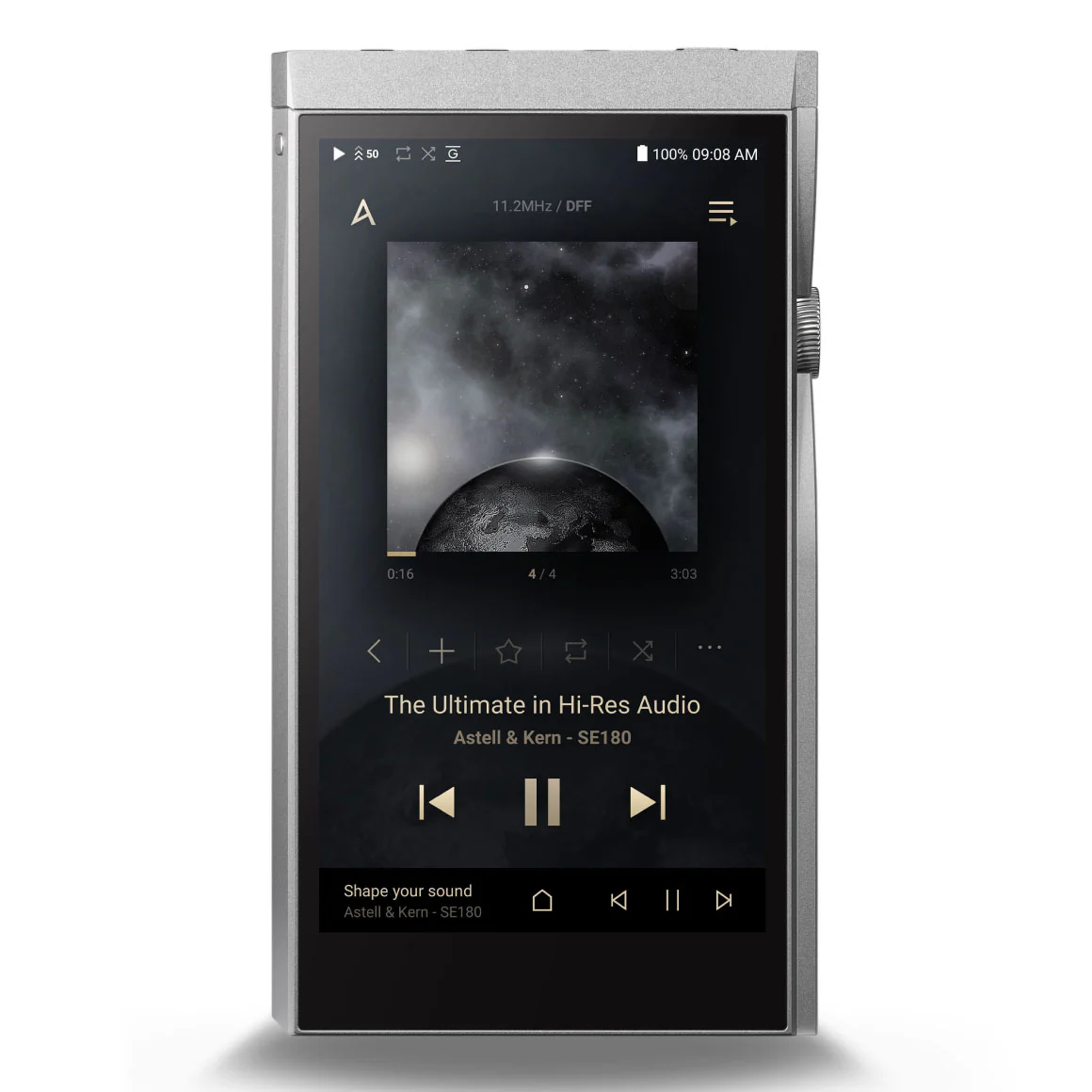

    Headphone-Zone-Astell&Kern-A&futura SE180
    Headphone-Zone-Astell&Kern-A&futura SE180

    TRANSFER MUSIC FILES WIRELESSLY IN NO TIME OR PLAY MUSIC DIRECTLY FROM YOUR SMARTPHONE

    Transferring files has never been this easy. With the all-new AK File Drop function, you can conveniently transfer files wirelessly from your PC, smartphone or an FTP program located device to your SE180. If you want to play music from an external device without having to transfer files, you can use the newly introduced BT Sync function. This function allows play music by pairing an external device, the smartphone, to your SE180 via Bluetooth.

    Headphone-Zone-Astell&Kern-A&futura SE180
    Headphone-Zone-Astell&Kern-A&futura SE180

    FIRST-EVER DAP WITH THE INNOVATIVE & POWER-EFFICIENT TERATON ALPHA TECHNOLOGY

    It is for the first time that a Digital Audio Player is featuring the TERATON ALPHA audio technology. This technology aids the Astell&Kern A&futura SE180 to offer efficient power consumption and amplification and block power noise. This happens right at the audio output interface stage where the digital-to-analogue signal conversion takes place. TERATON ALPHA consists of Astell&Kern's patented technologies that are developed after extensive research and development to deliver a sound closer to how artists intend their music to sound.

    Headphone-Zone-Astell&Kern-A&futura SE180
    Headphone-Zone-Astell&Kern-A&futura SE180

    NEWLY UPGRADED USER INTERFACE FOR AN ANDROID-LIKE SEAMLESS EXPERIENCE

    With an all-new upgraded user interface, the A&futura SE180 intends to offer a seamless user experience similar to that of an Android smartphone. Within the new interface, you will find a fresh navigation bar right at the bottom of the screen that lets you control playback and skip tracks even when you are swiping through screens.

    Headphone-Zone-Astell&Kern-A&futura SE180

    STUNNING 5-INCH HD SCREEN FOR A VIBRANT AND CRISP DISPLAY

    From the album artwork comes to life on the screen of the Astell&Kern A&futura SE180 as it comes with a stunning HD screen. With a 5-inch touchscreen display having a 1920x1080 pixel resolution, you get up to 16.7 million colours and 441 PPI (Pixels Per Inch). This makes for a vibrant, clean and sharp user interface.

    Headphone-Zone-Astell&Kern-A&futura SE180
    Headphone-Zone-Astell&Kern-A&futura SE180

    AN ART-CENTRIC ELEGANT DESIGN THAT REPRESENTS HIGH-QUALITY CRAFTSMANSHIP

    The design of the A&futura SE180 depicts the traces of the wind, while the flowing lines on its body indicate great tunes that are vital for an immersive listening experience. The key element in the design of the SE180 is the smooth yet expanding silhouette. The continuous outline on the exterior shows the limitless possibility of tonal scalability. You can find the volume knob button at the centre of the curves while a single multi-function button is on the left for efficient one-hand use. The ceramic rear cover, used in the A&futura SE180 implicates a finely crafted art sculpture. Every audio output on this device including, 2.5mm, 3.5mm and 4.4mm connectors, comes with gold rings.

    Headphone-Zone-Astell&Kern-A&futura SE180

    SPECS

    GENERAL SPECIFICATIONS
    MODEL A&futura SE180
    BODY COLOR Moon Silver
    BODY MATERIAL Aluminum
    DISPLAY 5-inch, 1920x1080 FHD Touch Display
    SUPPORTED AUDIO FORMATS WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA
    MQA PALYBACK Services (Tidal Masters), Local files, external USB, MQA-CD (ripped)
    INPUT USB Type-C input (for charging PC & MAC)
    CHARGING 9V 1.67A/5V 2A
    WI-FI 802.11 b/g/n (2.4GHz)
    BLUETOOTH V5.0 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC)
    DIMENSIONS 3.03"(77mm)[W] x 5.09"(129.2mm)[H] x 0.78"(19.9mm)[D] (Only body)
    3.03"(77mm)[W] x 5.4"(137.2mm)[H] x 0.78"(19.9mm)[D] (Combined with a module
    WEIGHT 9.88 oz (280g)
    FEATURE ENHANCEMENTS Firmware upgrades supported (OTA)
    SAR Body 10g SAR (W/Kg)_WLAN 2.4Ghz: 0.016
    WHEEL LED light (LED Indicator)
    BATTERY
    CAPACITY 3,800mAh 3.8V Li-Polymer Battery
    CHARGE TIME About 5 hours (Standard: 5V / 2A Charging), about 3 hours
    (Fast: 9V / 1.67A Charging)
    MEMORY
    BUILT IN MEMORY 256GB (NAND)
    EXTERNAL MEMORY microSD (Max. 1TB) x1
    OS
    SUPPORTED OS Windows 7,8,10 (32/64bit), MAC OS X 10.7 and up
    CLOCK SOURCE
    CLOCK JITTER 25ps(Typ)
    REFERENCE CLOCK JITTER 800 Femto Seconds
    SEM1 SPECIFICATION
    MODEL SEM1
    BODY COLOR Moon Silver
    BODY MATERIAL Aluminum, Stainless steel, Polycarbonate
    SAMPLE RATE PCM: 8kHz ~ 384kHz (8/16/24/32bits per Sample) DSD
    Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo
    OUTPUT LEVEL [Normal Gain] Unbalanced 2Vrms / Balanced 4Vrms (Condition No Load)
    [High Gain] Unbalanced 3Vrms / Balanced 6Vrms (Condition No Load)
    DAC ESS ES9038PRO (Single DAC)
    DECODING Support up to 32bit / 384kHz Bit-to-Bit Playback
    DIMENSIONS 3.03"(77mm)[W] x 2.99"(76mm)[H] x 0.78"(19.9mm)[D] (Only body)
    WEIGHT 3.53 oz (100g)
    PLAYBACK TIME Above 10.5hours (FLAC, 16bit, 44.1kHz, Vol.50, LCD off)
    AUDIO PERFORMANCE
    FREQUENCY RESPONSE ±0.04dB (Condition: 20Hz~20kHz) Unbalanced /
    ±0.04dB (Condition: 20Hz~20kHz) Balanced
    ±0.07dB (Condition: 20Hz~70kHz) Unbalanced /
    ±0.06dB (Condition: 20Hz~70kHz) Balanced
    SIGNAL TO NOISE RATIO [Normal Gain] 122dB @ 1kHz, Unbalanced / 126dB @ 1kHz, Balanced
    [High Gain] 125dB @ 1kHz, Unbalanced / 129dB @ 1kHz, Balance
    CROSSTALK [Normal Gain] -138dB @ 1kHz, Unbalanced / -145dB @ 1kHz, Balanced
    [High Gain] -138dB @ 1kHz, Unbalanced / -147dB @ 1kHz, Balanced
    THD+N [Normal Gain] 0.0005% @ 1kHz, Unbalanced / 0.0004% @ 1kHz, Balanced
    [High Gain] 0.0007% @ 1kHz, Unbalanced / 0.0006% @ 1kHz, Balanced
    IMD SAMPTE 0.0003% 800Hz 10kHz (4:1) Unbalanced /
    0.0003% 800Hz 10kHz (4:1) Balanced
    OUTPUT IMPEDANCE 3.5mm (1ohm) / 2.5mm (1.5ohm) / 4.4mm (1.5ohm)
    IN THE BOX
    BOX CONTENTS 1. Astell&Kern A&futura SE180
    2. 1 x SEM1 ESS ES9038PRO DAC module
    3. 1 x USB-C to USB-A cable (1 metre)
    4. 3 x screen protectors
    5. 1 x Quick start guide


    Headphone-Zone-Astell&Kern-A&futura SE180

    COMPARISONS

    Astell&Kern - A&futura SE180 vs competitors
    Astell&Kern - A&futura SE180
    ₹ 1,24,999/-₹ 1,49,999

    Astell&Kern - A&norma SR25 vs competitors
    Astell&Kern - A&norma SR25
    ₹ 54,990/-₹ 69,990

    Astell&Kern - KANN ALPHA vs competitors
    Astell&Kern - KANN ALPHA
    ₹ 99,999/-₹ 1,09,999

    Astell&Kern - A&futura SE200 vs competitors
    Astell&Kern - A&futura SE200
    ₹ 1,34,990/-₹ 1,64,990

    DAC Chip 1x ESS ES9038PRO 2x Cirrus Logic CS43198 2x ESS ES9068AS 1x AKM AK4499EQ &
    2x ESS ES9068AS
    CPU Octa-Core Quad-Core Quad-Core Octa-Core
    Screen Size 5" FHD 3.6" LCD 4.1" HD Screen 5" LCD
    Sample Rate PCM : 8kHz ~ 384kHz (8/16/24/32bits Per Sample) /
    DSD Native: DSD64(1bit 2.8MHz), Stereo /
    DSD128(1bit 5.6MHz), Stereo /
    DSD256(1bit 11.2MHz), Stereo
    PCM : 8kHz ~ 384kHz (8/16/24/32bits Per Sample) /
    DSD Native: DSD64(1bit 2.8MHz), Stereo /
    DSD128(1bit 5.6MHz), Stereo /
    DSD256(1bit 11.2MHz), Stereo
    PCM : 8kHz ~ 384kHz (8/16/24/32bits Per Sample) /
    DSD Native: DSD64(1bit 2.8MHz), Stereo /
    DSD128(1bit 5.6MHz), Stereo /
    DSD256(1bit 11.2MHz), Stereo
    PCM : 8kHz ~ 384kHz (8/16/24/32bits Per Sample) /
    DSD Native: DSD64(1bit 2.8MHz), Stereo /
    DSD128(1bit 5.6MHz), Stereo /
    DSD256(1bit 11.2MHz), Stereo
    Battery Life 10.5 Hours 21 Hours 14.5 Hours 10 Hours
    Balanced Outputs 2.5 mm & 4.4 mm Bal Output 2.5 mm Bal. Output 2.5 mm & 4.4 mm of Bal Output 2.5 mm Bal Output
    USB Interface Type-C, Micro USB Type-C, Micro USB Type-C, Micro USB Type-C, Micro USB
    Internal Storage 256 GB 64 GB 65 GB 256 GB
    External Storage MicroSD (Max. 1TB) X1 MicroSD (Max. 1TB) X1 MicroSD (Max. 1TB) X1 MicroSD (Max. 1TB) X1
    Output Power Upto 6Vrms Power Output Upto 4.0 Vrms Power Output Upto 12Vrms Power Output Upto 6Vrms Power Output
    Bluetooth Version V5.0 V4.2 V5.0 V4.2
    Bluetooth Codecs (A2DP, AVRCP, Qualcomm® AptX™ HD, LDAC) (A2DP, AVRCP, AptXTM HD, LDAC) (A2DP, AVRCP, Qualcomm® AptX™ HD, LDAC) (A2DP, AVRCP, AptXTM HD)
    WiFi
    Tidal Streaming
    Downloadable Apps
    MQA Support
    Inputs USB Type-C Input (For Charging PC & MAC) USB Type-C Input (For PC & MAC) USB Type-C Input (For Charging PC & MAC) USB Type-C Input (For PC & MAC)
    In The Box 1. Astell&Kern A&Futura SE180
    2. 1 X SEM1 ESS ES9038PRO DAC Module
    3. 1 X USB-C To USB-A Cable (1 Metre)
    4. 3 X Screen Protectors
    5. 1 X Quick Start Guide
    1. Astell&Kern - A&Norma SR25 Digital Audio Player
    2. USB Type-C Cable X 1
    3. MicroSD Card Slot Cover X 2
    4. Protective Film (Front X 2, Back X 2)
    5. Quick Start Guide X 1
    6. Warranty Card X 1
    1. Astell&Kern KANN ALPHA Digital Audio Player
    2. USB Type-C Cable X 1
    3. Quick Start Guide X 1
    4. Warranty Card X 1
    5. MicroSD Card Slot Cover X 2
    6. Protective Film (Front X 2, Back X 2)
    1. Astell&Kern A&Futura SE200
    2. USB Type-C Cable
    3. Quick Start Guide
    4. Warranty Card
    5. 2x MicroSD Card Slot Cover
    6. Protective Film (2x Front, 2x Back)
    Expert Verdict The newly introduced BT Sink function connects the SE180 to an external device, such as your smartphone, via BT, enabling you to take advantage of the A&K's DAC while playing from your phone's library."
    Steronet
    "The SR25’s design blends aesthetics with user convenience and features an aluminium body that suppresses noise and improves sound quality."
    AVS FORUM
    The battery will outlast a road-trip, the power handling is glorious, and the stylish, rock-solid build is (just about) small enough to take with you on your travels."
    WHAT HI FI
    "The SE200 is a world first in that it features two audiophile-calibre Sabre ESS9068AS DACs (in a dual DAC configuration), alongside a single AKM4499EQ (last seen in the flagship SP2000)."
    Trusted Reviews

    FAQS

    DOWNLOADS

  • SE180 User Manual


  • SE1800 USB DAC Driver


  • Driver File: SE180 USB DAC Driver


  • Notes


  • 1. This is an integrated USB Audio driver for AK Devices. The previous USB DAC driver will need to be deleted from the AK Device prior to installing the new driver. To delete the previous driver, connect the AK Device to the computer and the previous driver can be located in the "Contents" folder.
  • 2. This driver is for Windows 7/8/8.1/10 (32/64bit). For MAC OS, the driver is automatically recognized without needing to be manually installed.
  • 3. Once the driver is installed for Windows PC, the device will be recognized automatically.
  • 4. To use the AK Device USB Audio as the default device, you may need to change the default output device option in the computer's Settings Menu.
  • 5. For high quality sound playback on Windows PC, it is recommended to change the default format to 24-bit, 192000Hz" for the AK Device in the Control Panel - Sound menu.
  • 6. For Native DSD playback, the music playback program must also be capable of Native DSD playback. Depending on the music playback program, you may need to change the audio device to AK Device USB Audio in Settings menu.
  • 7. For more information on using USB Audio, please refer to the AK Device's product manual.


  • How to Install the Driver


  • 1. Click the Driver File link above to download the USB DAC driver for your Windows computer. After running "setup.exe" file, click the [Next >] button. puter and the previous driver can be located in the "Contents" folder.
  • 2. The installer will display the path of the driver to be installed.
  • 3. Click the [Install] button in the installer to complete the installation.
  • 4. When the installation is complete, the AK Device's USB DAC device driver is automatically installed. Click [Next >] --> [Finish] button of the installer to complete the installation.
  • 5. Connect the AK Device in USB DAC mode to listen to music.
  • Warranty & Media Reviews

    1 Year Warranty

    Don't sweat it, this Astell&Kern A&futura SE180 comes with a 1 year warranty from Astell&Kern that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.

    Read more about Astell&Kern's warranty in India.

    IGN Awards

    Best portable music player over £1000

    What HiFi
    Oct, 2021

    The Verge

    "The newly introduced BT Sink function connects the SE180 to an external device, such as your smartphone, via BT, enabling you to take advantage of the A&K's DAC while playing from your phone's library."

    Read More
    Headfonia

    "Both modules support 2.5mm, 3.5mm and 4.4mm headphones connections for accommodating a greater variety of headphones, while there is support for MQA playback via downloaded MQA audio files and Tidal."

    Read More
    What Hi-Fi

    "The A&futura SE180 is the first model to boast Astell&Kern’s Teraton Alpha Sound Solution technology. This is designed for deliver audio playback close to the original sound."

    Read More
    Inner Fidelity

    "A&futura SE180 has 256GB onboard memory that can be expanded up to 1TB by using the microSD card slot, meaning users can carry thousands of hi-res albums at all times."

    Read More

    Product Information

    Shipping & Returns

    Description

    Designed in
    Korea

    1 Year of
    Warranty

    Ideal for
    Audiophiles

    Best Suited for
    Portable Use

    Bluetooth with
    LDAC & aptX HD

    10.5 Hours of
    Battery Life

    2.5mm & 4.4mm
    Balanced Output

    Upto 6Vrms
    Power Output

    ESS ES9038PRO
    DAC Chip

    Volume
    Controls

    256 GB
    Internal Memory

    Battery Capacity of
    3800 mAh

    DESCRIPTION

    THE FUTURE OF HI-FI MUSIC LISTENING IS HERE WITH THE HIGHLY ADVANCED A&FUTURA SE180

    Powered with an interchangeable module, the Astell&Kern A&futura SE180 comes with a powerful ESS ES9038PRO as its default configuration. This 8-channel DAC, which is used primarily in premium home audio equipment, is now a part of the SE180 aiding extended dynamic range and detailed sound. The ability to use different DAC/AMP configurations, tuning and outputs for each module gives you the freedom to pick the right kind of sound for a personalised music listening experience. Pair almost any headphones or IEMs with the A&futura SE180 as they support 2.5mm, 3.5mm and 4.4mm headphones connections.

    Headphone-Zone-Astell&Kern-A&futura SE180

    FUTURISTIC DIGITAL AUDIO PLAYER WITH ONE-OF-ITS-KIND INTERCHANGEABLE DAC MODULES

    The use of innovative interchangeable DACs gives you a whole new way of exploring premium Hi-Fi sound. This also improves the overall sonic performance of the player. The interchangeable modules are connected to the SE180 using a double-locking mechanism which is different from other products. The first locking structure connects the module to the SE180 while the second locking structure informs you that the module is successfully paired. The internal connectors of the SE180 are spring enabled to ensure a stable audio signal connection and to avoid connection failure, particularly during external shock. The SE180 blocks the power and radio frequency (RF) noise caused by the main unit. This unique and circuit separation structure effectively eliminates the noise leading to a pure music listening experience.

    Headphone-Zone-Astell&Kern-A&futura SE180
    Headphone-Zone-Astell&Kern-A&futura SE180
    Headphone-Zone-Astell&Kern-A&futura SE180

    GO BEYOND THE LIMITS OF HI-FI PREMIUM SOUND WITH NEXT-GEN AMP TECHNOLOGY

    Breaking all the limitations of previously used amps, the A&futura SE180 features the Next Generation AMP technology to go beyond the acceptable HI-Fi premium sound and to deliver the absolute best. The SE180 has been entirely redesigned to include upgraded OP-AMP parts, circuit design, board layout and enhanced tuning.

    Headphone-Zone-Astell&Kern-A&futura SE180

    HI-FI WIRELESS SOUND WITH APTX-HD & LDAC CODECS POWERED BY BLUETOOTH 5.0

    Get the absolute convenience of listening to music through your headphones wirelessly with Bluetooth 5.0. With support for aptX HD and LDAC, you can listen to audiophile-grade high-quality sound on your SE180. Enjoy your music in original master recording format with the SE180 as it is compatible with MQA (Master Quality Authenticated) playback. Get real-time updates about the volume level and current bit rate directly on the LED volume wheel of the SE180.
    SE180

    Headphone-Zone-Astell&Kern-A&futura SE180
    Headphone-Zone-Astell&Kern-A&futura SE180

    TRANSFER MUSIC FILES WIRELESSLY IN NO TIME OR PLAY MUSIC DIRECTLY FROM YOUR SMARTPHONE

    Transferring files has never been this easy. With the all-new AK File Drop function, you can conveniently transfer files wirelessly from your PC, smartphone or an FTP program located device to your SE180. If you want to play music from an external device without having to transfer files, you can use the newly introduced BT Sync function. This function allows play music by pairing an external device, the smartphone, to your SE180 via Bluetooth.

    Headphone-Zone-Astell&Kern-A&futura SE180
    Headphone-Zone-Astell&Kern-A&futura SE180

    FIRST-EVER DAP WITH THE INNOVATIVE & POWER-EFFICIENT TERATON ALPHA TECHNOLOGY

    It is for the first time that a Digital Audio Player is featuring the TERATON ALPHA audio technology. This technology aids the Astell&Kern A&futura SE180 to offer efficient power consumption and amplification and block power noise. This happens right at the audio output interface stage where the digital-to-analogue signal conversion takes place. TERATON ALPHA consists of Astell&Kern's patented technologies that are developed after extensive research and development to deliver a sound closer to how artists intend their music to sound.

    Headphone-Zone-Astell&Kern-A&futura SE180
    Headphone-Zone-Astell&Kern-A&futura SE180

    NEWLY UPGRADED USER INTERFACE FOR AN ANDROID-LIKE SEAMLESS EXPERIENCE

    With an all-new upgraded user interface, the A&futura SE180 intends to offer a seamless user experience similar to that of an Android smartphone. Within the new interface, you will find a fresh navigation bar right at the bottom of the screen that lets you control playback and skip tracks even when you are swiping through screens.

    Headphone-Zone-Astell&Kern-A&futura SE180

    STUNNING 5-INCH HD SCREEN FOR A VIBRANT AND CRISP DISPLAY

    From the album artwork comes to life on the screen of the Astell&Kern A&futura SE180 as it comes with a stunning HD screen. With a 5-inch touchscreen display having a 1920x1080 pixel resolution, you get up to 16.7 million colours and 441 PPI (Pixels Per Inch). This makes for a vibrant, clean and sharp user interface.

    Headphone-Zone-Astell&Kern-A&futura SE180
    Headphone-Zone-Astell&Kern-A&futura SE180

    AN ART-CENTRIC ELEGANT DESIGN THAT REPRESENTS HIGH-QUALITY CRAFTSMANSHIP

    The design of the A&futura SE180 depicts the traces of the wind, while the flowing lines on its body indicate great tunes that are vital for an immersive listening experience. The key element in the design of the SE180 is the smooth yet expanding silhouette. The continuous outline on the exterior shows the limitless possibility of tonal scalability. You can find the volume knob button at the centre of the curves while a single multi-function button is on the left for efficient one-hand use. The ceramic rear cover, used in the A&futura SE180 implicates a finely crafted art sculpture. Every audio output on this device including, 2.5mm, 3.5mm and 4.4mm connectors, comes with gold rings.

    Headphone-Zone-Astell&Kern-A&futura SE180

    SPECS

    GENERAL SPECIFICATIONS
    MODEL A&futura SE180
    BODY COLOR Moon Silver
    BODY MATERIAL Aluminum
    DISPLAY 5-inch, 1920x1080 FHD Touch Display
    SUPPORTED AUDIO FORMATS WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA
    MQA PALYBACK Services (Tidal Masters), Local files, external USB, MQA-CD (ripped)
    INPUT USB Type-C input (for charging PC & MAC)
    CHARGING 9V 1.67A/5V 2A
    WI-FI 802.11 b/g/n (2.4GHz)
    BLUETOOTH V5.0 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC)
    DIMENSIONS 3.03"(77mm)[W] x 5.09"(129.2mm)[H] x 0.78"(19.9mm)[D] (Only body)
    3.03"(77mm)[W] x 5.4"(137.2mm)[H] x 0.78"(19.9mm)[D] (Combined with a module
    WEIGHT 9.88 oz (280g)
    FEATURE ENHANCEMENTS Firmware upgrades supported (OTA)
    SAR Body 10g SAR (W/Kg)_WLAN 2.4Ghz: 0.016
    WHEEL LED light (LED Indicator)
    BATTERY
    CAPACITY 3,800mAh 3.8V Li-Polymer Battery
    CHARGE TIME About 5 hours (Standard: 5V / 2A Charging), about 3 hours
    (Fast: 9V / 1.67A Charging)
    MEMORY
    BUILT IN MEMORY 256GB (NAND)
    EXTERNAL MEMORY microSD (Max. 1TB) x1
    OS
    SUPPORTED OS Windows 7,8,10 (32/64bit), MAC OS X 10.7 and up
    CLOCK SOURCE
    CLOCK JITTER 25ps(Typ)
    REFERENCE CLOCK JITTER 800 Femto Seconds
    SEM1 SPECIFICATION
    MODEL SEM1
    BODY COLOR Moon Silver
    BODY MATERIAL Aluminum, Stainless steel, Polycarbonate
    SAMPLE RATE PCM: 8kHz ~ 384kHz (8/16/24/32bits per Sample) DSD
    Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo
    OUTPUT LEVEL [Normal Gain] Unbalanced 2Vrms / Balanced 4Vrms (Condition No Load)
    [High Gain] Unbalanced 3Vrms / Balanced 6Vrms (Condition No Load)
    DAC ESS ES9038PRO (Single DAC)
    DECODING Support up to 32bit / 384kHz Bit-to-Bit Playback
    DIMENSIONS 3.03"(77mm)[W] x 2.99"(76mm)[H] x 0.78"(19.9mm)[D] (Only body)
    WEIGHT 3.53 oz (100g)
    PLAYBACK TIME Above 10.5hours (FLAC, 16bit, 44.1kHz, Vol.50, LCD off)
    AUDIO PERFORMANCE
    FREQUENCY RESPONSE ±0.04dB (Condition: 20Hz~20kHz) Unbalanced /
    ±0.04dB (Condition: 20Hz~20kHz) Balanced
    ±0.07dB (Condition: 20Hz~70kHz) Unbalanced /
    ±0.06dB (Condition: 20Hz~70kHz) Balanced
    SIGNAL TO NOISE RATIO [Normal Gain] 122dB @ 1kHz, Unbalanced / 126dB @ 1kHz, Balanced
    [High Gain] 125dB @ 1kHz, Unbalanced / 129dB @ 1kHz, Balance
    CROSSTALK [Normal Gain] -138dB @ 1kHz, Unbalanced / -145dB @ 1kHz, Balanced
    [High Gain] -138dB @ 1kHz, Unbalanced / -147dB @ 1kHz, Balanced
    THD+N [Normal Gain] 0.0005% @ 1kHz, Unbalanced / 0.0004% @ 1kHz, Balanced
    [High Gain] 0.0007% @ 1kHz, Unbalanced / 0.0006% @ 1kHz, Balanced
    IMD SAMPTE 0.0003% 800Hz 10kHz (4:1) Unbalanced /
    0.0003% 800Hz 10kHz (4:1) Balanced
    OUTPUT IMPEDANCE 3.5mm (1ohm) / 2.5mm (1.5ohm) / 4.4mm (1.5ohm)
    IN THE BOX
    BOX CONTENTS 1. Astell&Kern A&futura SE180
    2. 1 x SEM1 ESS ES9038PRO DAC module
    3. 1 x USB-C to USB-A cable (1 metre)
    4. 3 x screen protectors
    5. 1 x Quick start guide


    Headphone-Zone-Astell&Kern-A&futura SE180

    COMPARISONS

    Astell&Kern - A&futura SE180 vs competitors
    Astell&Kern - A&futura SE180
    ₹ 1,24,999/-₹ 1,49,999

    Astell&Kern - A&norma SR25 vs competitors
    Astell&Kern - A&norma SR25
    ₹ 54,990/-₹ 69,990

    Astell&Kern - KANN ALPHA vs competitors
    Astell&Kern - KANN ALPHA
    ₹ 99,999/-₹ 1,09,999

    Astell&Kern - A&futura SE200 vs competitors
    Astell&Kern - A&futura SE200
    ₹ 1,34,990/-₹ 1,64,990

    DAC Chip 1x ESS ES9038PRO 2x Cirrus Logic CS43198 2x ESS ES9068AS 1x AKM AK4499EQ &
    2x ESS ES9068AS
    CPU Octa-Core Quad-Core Quad-Core Octa-Core
    Screen Size 5" FHD 3.6" LCD 4.1" HD Screen 5" LCD
    Sample Rate PCM : 8kHz ~ 384kHz (8/16/24/32bits Per Sample) /
    DSD Native: DSD64(1bit 2.8MHz), Stereo /
    DSD128(1bit 5.6MHz), Stereo /
    DSD256(1bit 11.2MHz), Stereo
    PCM : 8kHz ~ 384kHz (8/16/24/32bits Per Sample) /
    DSD Native: DSD64(1bit 2.8MHz), Stereo /
    DSD128(1bit 5.6MHz), Stereo /
    DSD256(1bit 11.2MHz), Stereo
    PCM : 8kHz ~ 384kHz (8/16/24/32bits Per Sample) /
    DSD Native: DSD64(1bit 2.8MHz), Stereo /
    DSD128(1bit 5.6MHz), Stereo /
    DSD256(1bit 11.2MHz), Stereo
    PCM : 8kHz ~ 384kHz (8/16/24/32bits Per Sample) /
    DSD Native: DSD64(1bit 2.8MHz), Stereo /
    DSD128(1bit 5.6MHz), Stereo /
    DSD256(1bit 11.2MHz), Stereo
    Battery Life 10.5 Hours 21 Hours 14.5 Hours 10 Hours
    Balanced Outputs 2.5 mm & 4.4 mm Bal Output 2.5 mm Bal. Output 2.5 mm & 4.4 mm of Bal Output 2.5 mm Bal Output
    USB Interface Type-C, Micro USB Type-C, Micro USB Type-C, Micro USB Type-C, Micro USB
    Internal Storage 256 GB 64 GB 65 GB 256 GB
    External Storage MicroSD (Max. 1TB) X1 MicroSD (Max. 1TB) X1 MicroSD (Max. 1TB) X1 MicroSD (Max. 1TB) X1
    Output Power Upto 6Vrms Power Output Upto 4.0 Vrms Power Output Upto 12Vrms Power Output Upto 6Vrms Power Output
    Bluetooth Version V5.0 V4.2 V5.0 V4.2
    Bluetooth Codecs (A2DP, AVRCP, Qualcomm® AptX™ HD, LDAC) (A2DP, AVRCP, AptXTM HD, LDAC) (A2DP, AVRCP, Qualcomm® AptX™ HD, LDAC) (A2DP, AVRCP, AptXTM HD)
    WiFi
    Tidal Streaming
    Downloadable Apps
    MQA Support
    Inputs USB Type-C Input (For Charging PC & MAC) USB Type-C Input (For PC & MAC) USB Type-C Input (For Charging PC & MAC) USB Type-C Input (For PC & MAC)
    In The Box 1. Astell&Kern A&Futura SE180
    2. 1 X SEM1 ESS ES9038PRO DAC Module
    3. 1 X USB-C To USB-A Cable (1 Metre)
    4. 3 X Screen Protectors
    5. 1 X Quick Start Guide
    1. Astell&Kern - A&Norma SR25 Digital Audio Player
    2. USB Type-C Cable X 1
    3. MicroSD Card Slot Cover X 2
    4. Protective Film (Front X 2, Back X 2)
    5. Quick Start Guide X 1
    6. Warranty Card X 1
    1. Astell&Kern KANN ALPHA Digital Audio Player
    2. USB Type-C Cable X 1
    3. Quick Start Guide X 1
    4. Warranty Card X 1
    5. MicroSD Card Slot Cover X 2
    6. Protective Film (Front X 2, Back X 2)
    1. Astell&Kern A&Futura SE200
    2. USB Type-C Cable
    3. Quick Start Guide
    4. Warranty Card
    5. 2x MicroSD Card Slot Cover
    6. Protective Film (2x Front, 2x Back)
    Expert Verdict The newly introduced BT Sink function connects the SE180 to an external device, such as your smartphone, via BT, enabling you to take advantage of the A&K's DAC while playing from your phone's library."
    Steronet
    "The SR25’s design blends aesthetics with user convenience and features an aluminium body that suppresses noise and improves sound quality."
    AVS FORUM
    The battery will outlast a road-trip, the power handling is glorious, and the stylish, rock-solid build is (just about) small enough to take with you on your travels."
    WHAT HI FI
    "The SE200 is a world first in that it features two audiophile-calibre Sabre ESS9068AS DACs (in a dual DAC configuration), alongside a single AKM4499EQ (last seen in the flagship SP2000)."
    Trusted Reviews

    FAQS

    DOWNLOADS

  • SE180 User Manual


  • SE1800 USB DAC Driver


  • Driver File: SE180 USB DAC Driver


  • Notes


  • 1. This is an integrated USB Audio driver for AK Devices. The previous USB DAC driver will need to be deleted from the AK Device prior to installing the new driver. To delete the previous driver, connect the AK Device to the computer and the previous driver can be located in the "Contents" folder.
  • 2. This driver is for Windows 7/8/8.1/10 (32/64bit). For MAC OS, the driver is automatically recognized without needing to be manually installed.
  • 3. Once the driver is installed for Windows PC, the device will be recognized automatically.
  • 4. To use the AK Device USB Audio as the default device, you may need to change the default output device option in the computer's Settings Menu.
  • 5. For high quality sound playback on Windows PC, it is recommended to change the default format to 24-bit, 192000Hz" for the AK Device in the Control Panel - Sound menu.
  • 6. For Native DSD playback, the music playback program must also be capable of Native DSD playback. Depending on the music playback program, you may need to change the audio device to AK Device USB Audio in Settings menu.
  • 7. For more information on using USB Audio, please refer to the AK Device's product manual.


  • How to Install the Driver


  • 1. Click the Driver File link above to download the USB DAC driver for your Windows computer. After running "setup.exe" file, click the [Next >] button. puter and the previous driver can be located in the "Contents" folder.
  • 2. The installer will display the path of the driver to be installed.
  • 3. Click the [Install] button in the installer to complete the installation.
  • 4. When the installation is complete, the AK Device's USB DAC device driver is automatically installed. Click [Next >] --> [Finish] button of the installer to complete the installation.
  • 5. Connect the AK Device in USB DAC mode to listen to music.
  • Warranty & Media Reviews

    1 Year Warranty

    Don't sweat it, this Astell&Kern A&futura SE180 comes with a 1 year warranty from Astell&Kern that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.

    Read more about Astell&Kern's warranty in India.

    IGN Awards

    Best portable music player over £1000

    What HiFi
    Oct, 2021

    The Verge

    "The newly introduced BT Sink function connects the SE180 to an external device, such as your smartphone, via BT, enabling you to take advantage of the A&K's DAC while playing from your phone's library."

    Read More
    Headfonia

    "Both modules support 2.5mm, 3.5mm and 4.4mm headphones connections for accommodating a greater variety of headphones, while there is support for MQA playback via downloaded MQA audio files and Tidal."

    Read More
    What Hi-Fi

    "The A&futura SE180 is the first model to boast Astell&Kern’s Teraton Alpha Sound Solution technology. This is designed for deliver audio playback close to the original sound."

    Read More
    Inner Fidelity

    "A&futura SE180 has 256GB onboard memory that can be expanded up to 1TB by using the microSD card slot, meaning users can carry thousands of hi-res albums at all times."

    Read More
    Astell&Kern - A&futura SE180 | Headphone Zone
