DESCRIPTION
Premium DDC Engineered With Award Winning Technology

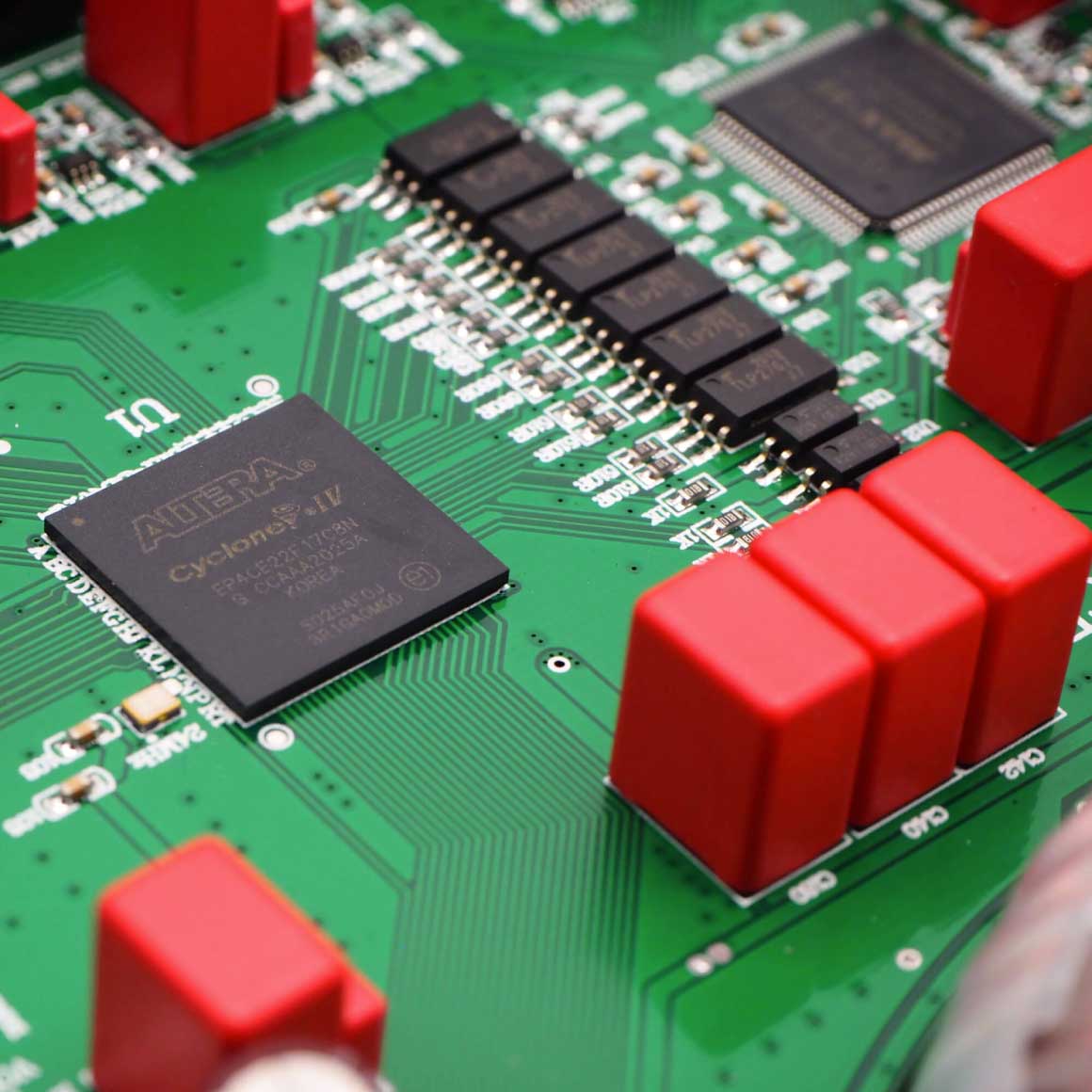

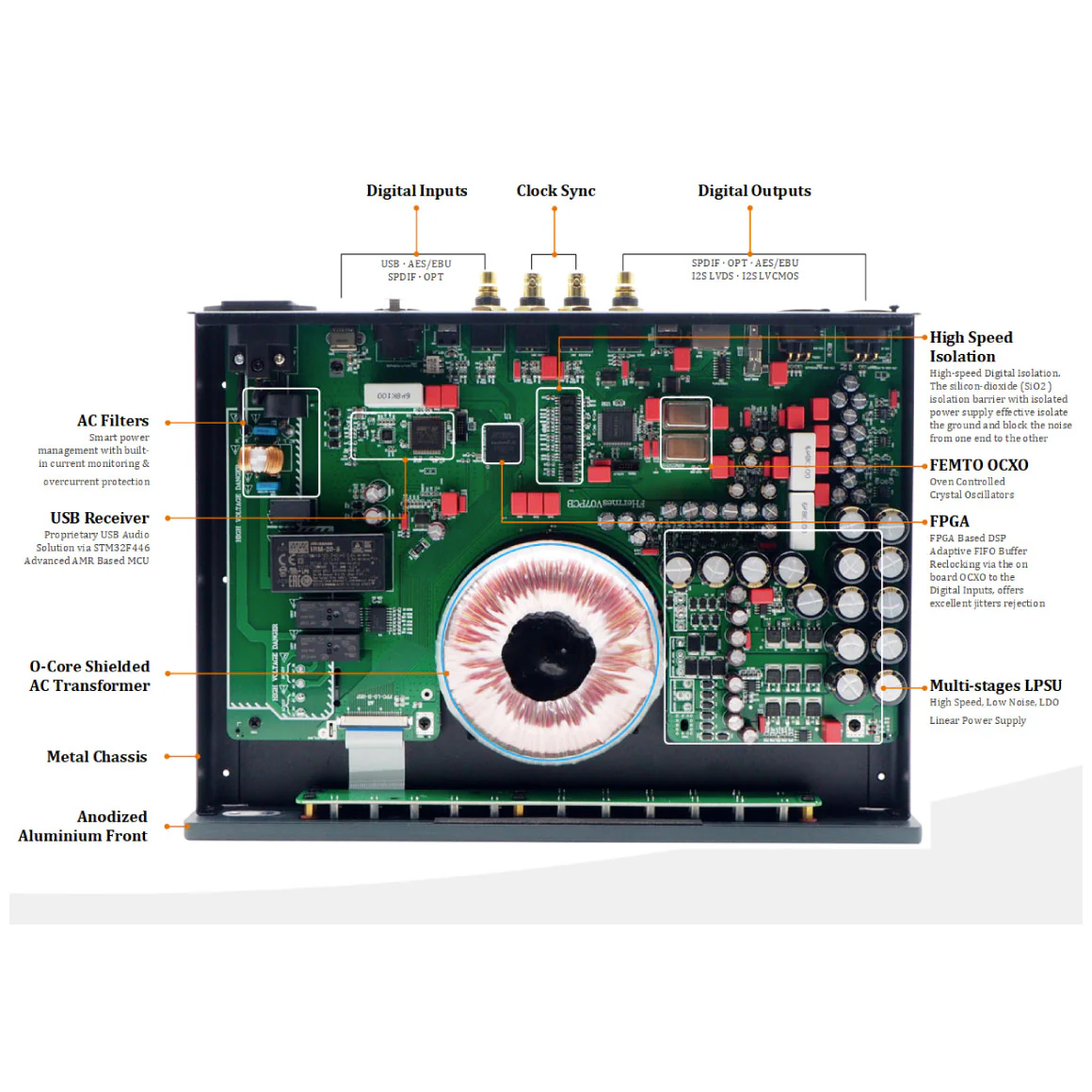

The DENAFRIPS HERMES is a premium Digital To Digital Converter (DDC). It took about 3 years to perfect the development and it leverages the technologies found in DENAFRIPS award-winning DAC, namely, Proprietary FPGA DSP Processing, FIFO Buffer & Reclocking. Along with Industry Leading USB Audio Interface Solution via STM32F466 Advanced AMR based MCU. Essentially, the HERMES is trickled down from the Gaia DDC.
Pristine Sound With Ultra Low Noise Floor

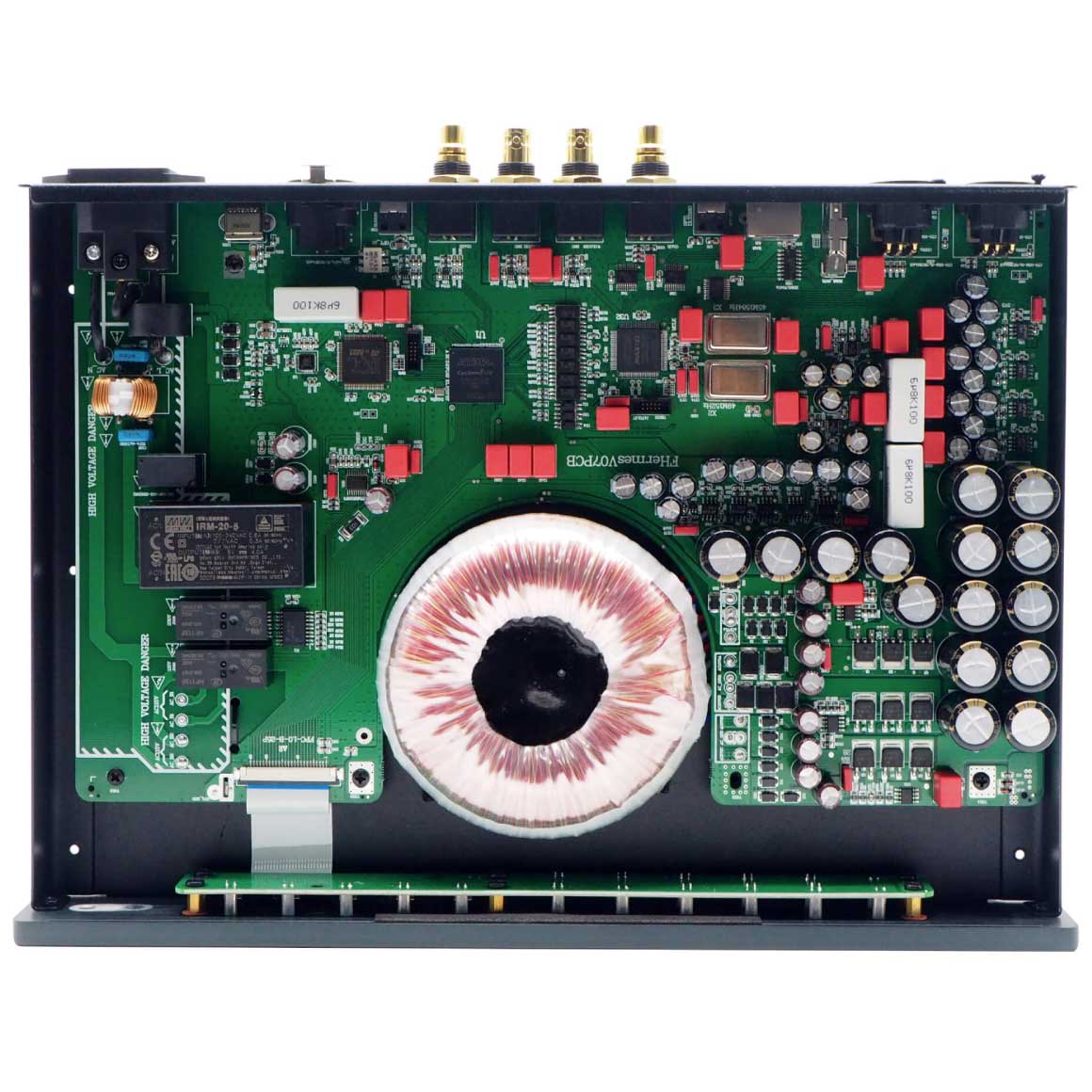

The DENAFRIPS HERMES packs more than 8 sets of Ultra Low Noise, Precision Linear Power Regulars along with an oversized O-Core Transformer. This design choice delivers clean power to the digital circuitry effortlessly, resulting in clean sound.
Expanded Connectivity - USB + SPDIF

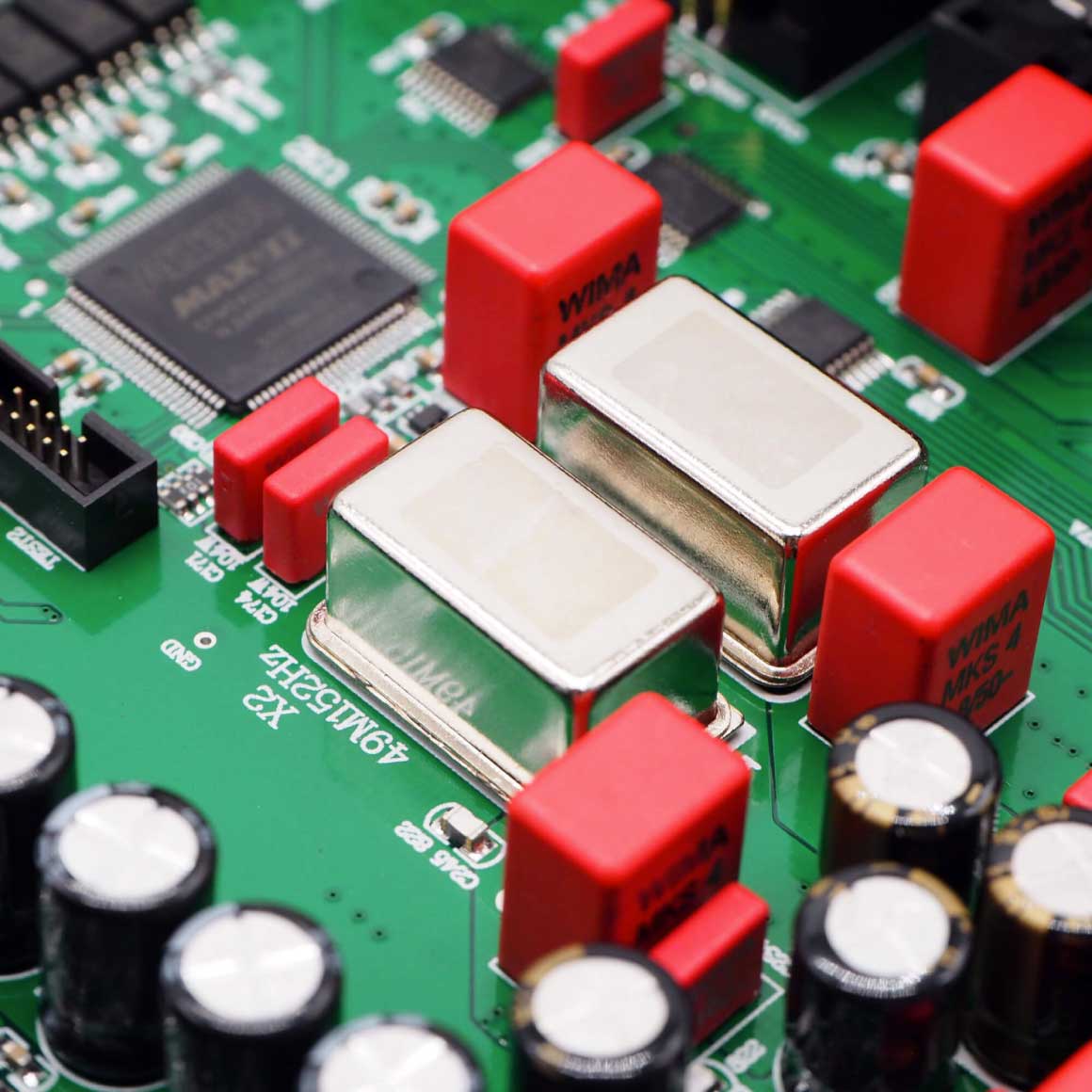

The DENAFRIPS HERMES is not limited to just processing USB signals. The HERMES accepts USB and SPDIF (Coax, TOSLink, AES/EBU) inputs. These digital signal data-streams will be FIFO buffered and reclocked via the Precision Oven Controlled Crystal Oscillator OCXO. This process eliminates the jitter to a negligible level, ensuring the digital output signal is free from the harmful jitter noise. The use of OCXO plays an important role here.
Best In Class Converters For Greater Sound Fidelity
If you are on the lookout for a Digital to Digital Converter that can potentially improve the sonic performance of your system, look no further. HERMES is probably the best companion that works with most DAC brands & models in the market. Set it up in your system and hear the difference.

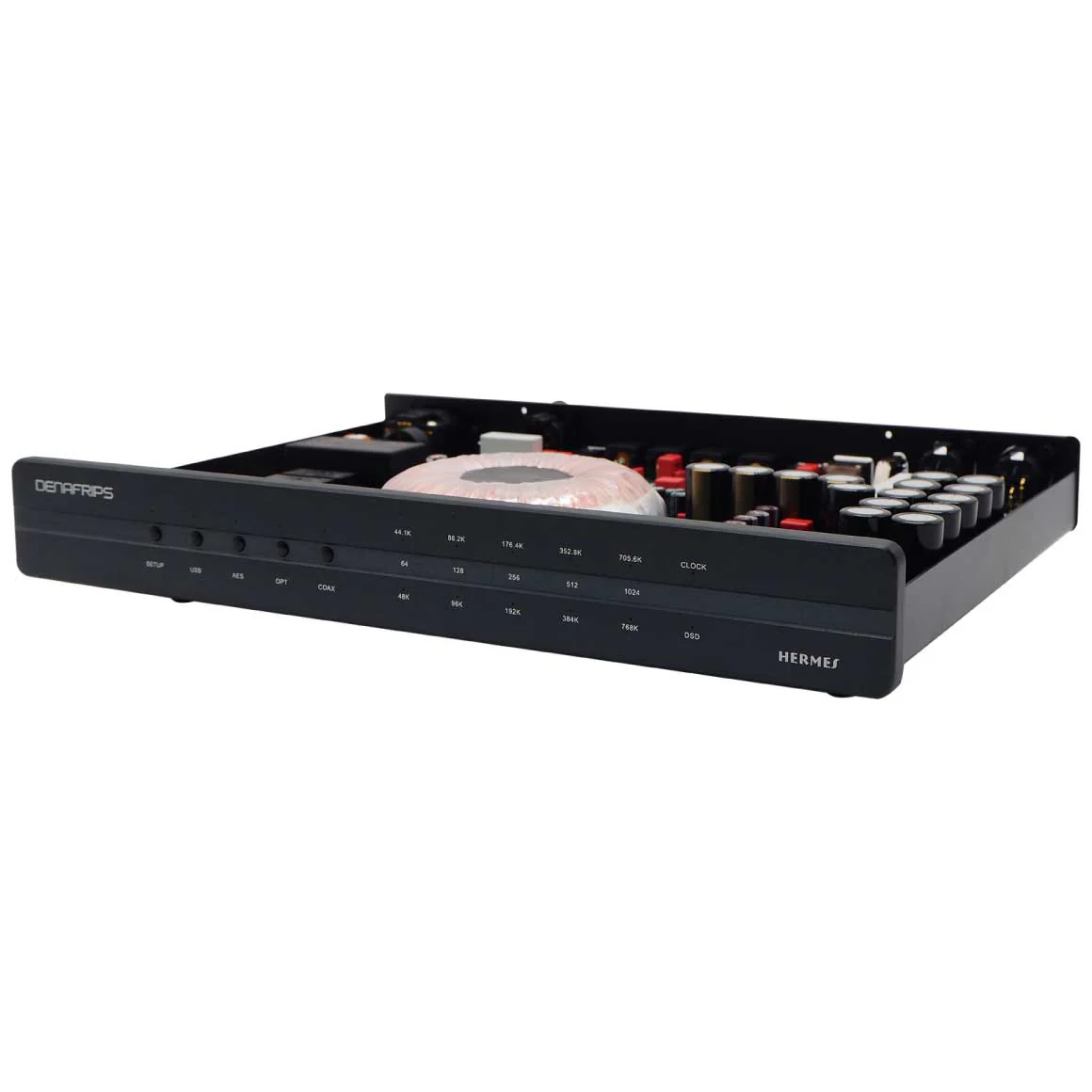

Black Coloured Body, Aluminium + Metal Alloy Build
The front panel of DENAFRIPS HERMES is cast in aluminium and the chassis is made of metal alloy. This makes the device super sturdy and resistant to external interference. The device is available in only black colour.
SPECS
| D/D CONVERTER | Proprietary FPGA DSP Processing Architecture FIFO Buffer and Reclock with Internal Crystal Precision Oven Controlled Crystal Oscillator OCXO Optical Isolated All Digital Input Interfaces Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU Licensed Thesycon USB Driver For Windows Platform Driverless On Mac & Linux Dual AES/EBU Output Supported External Clocks Input Supported |
| DSD | DDSD64 (DoP) on Coax/AES/Opt Input & Output Upto DSD512 On USB Input & I²S Output |
| PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input & Output Up to 768KHz On USB Input & Up to 384KHz on I²S Output |
| DIGITAL INPUT | Coax SPDIF via RCA TOSLink x 1 AES/EBU x 1 USB2.0 Type B |
| EXTERNAL CLOCK INPUT | 45.1548MHz 49.152Mhz |
| DIGITAL OUTPUT | Coax SPDIF via RCA TOSLink x 1 AES/EBU x 2 I²S HDMI LVDS Standard I²S RJ45 LVCMOS Standard |
| AC POWER REQUIREMENT | 100-240VAC, 50/60Hz (Worldwide Voltage) |
| POWER CONSUMPTION | ≤20W |
| DIMENSIONS | 330W x 240D x 50H mm (Feet +18mm) |
| WEIGHT | 4.5 Kg |
| COLOR | Black |
| BOX CONTENTS | 1. Denafrips HERMES |
| 2. User Manual |
FAQS
DOWNLOADS
WARRANTY
3 Year Warranty
Don't sweat it, this Denafrips HERMES comes with a 3 year warranty from Denafrips that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Denafrips's warranty in India.
