Denafrips - Terra

A quality master clocking device is one of the profound elements and foundation of superior sonic performance in an audio setup. The lower the jitter and phase noise between your audio equipment means better the sound quality of the digital audio equipment. Knowing this simple fact, Denafrips designed a high-quality master clock generator - the Terra. Terra is a Master Clock Generator designed for High-End audio applications, offering more clarity, greater detail and more realism. Terra generates an ultra-stable clock signal to synchronise your digital equipment. This will minimise jitter during the transmission and processing of the digital signal. Denafrips Terra presents a veritable wall of sound sprinkled with morsels of micro-detail. The music seems bigger and broader just with the addition of Terra in your audio setup.

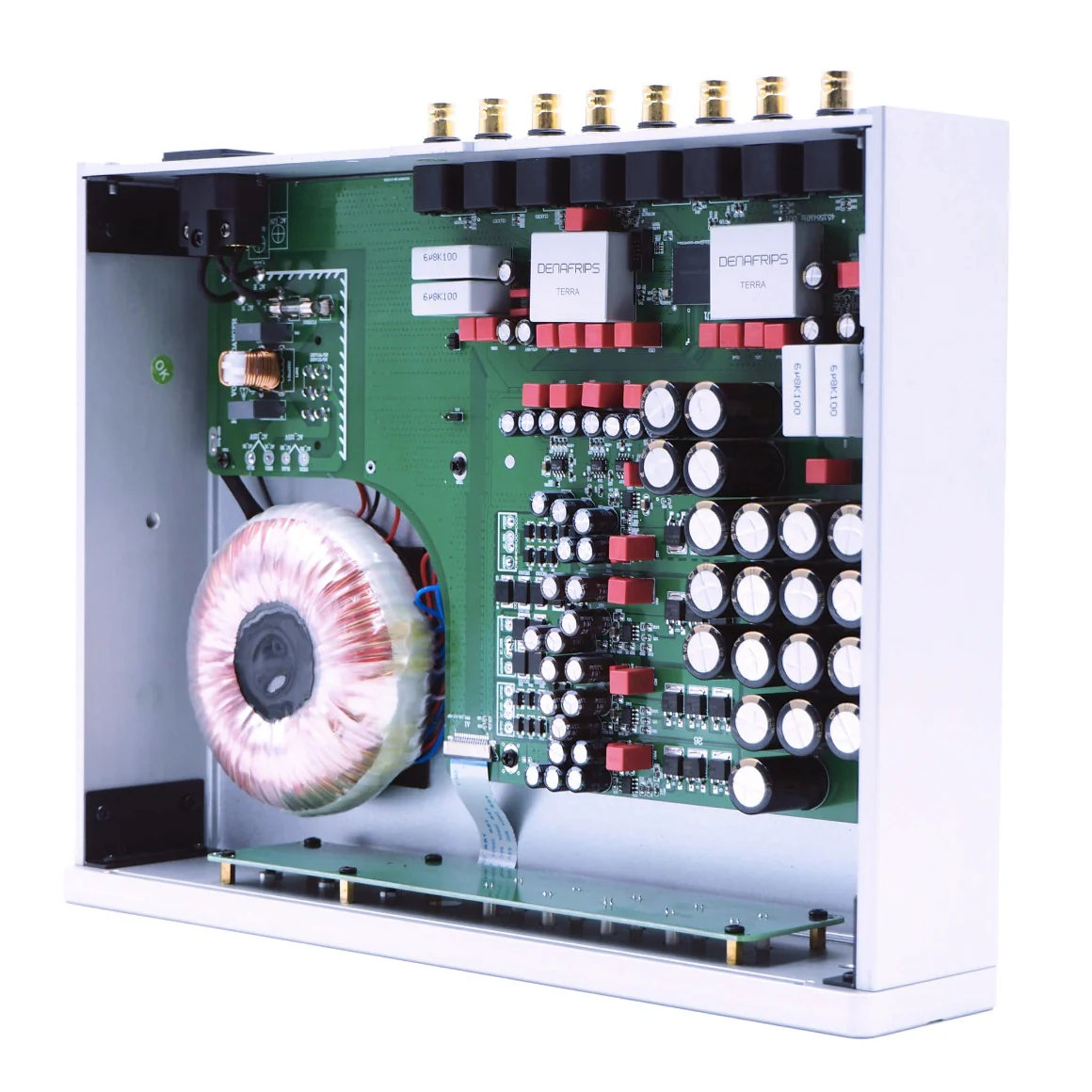

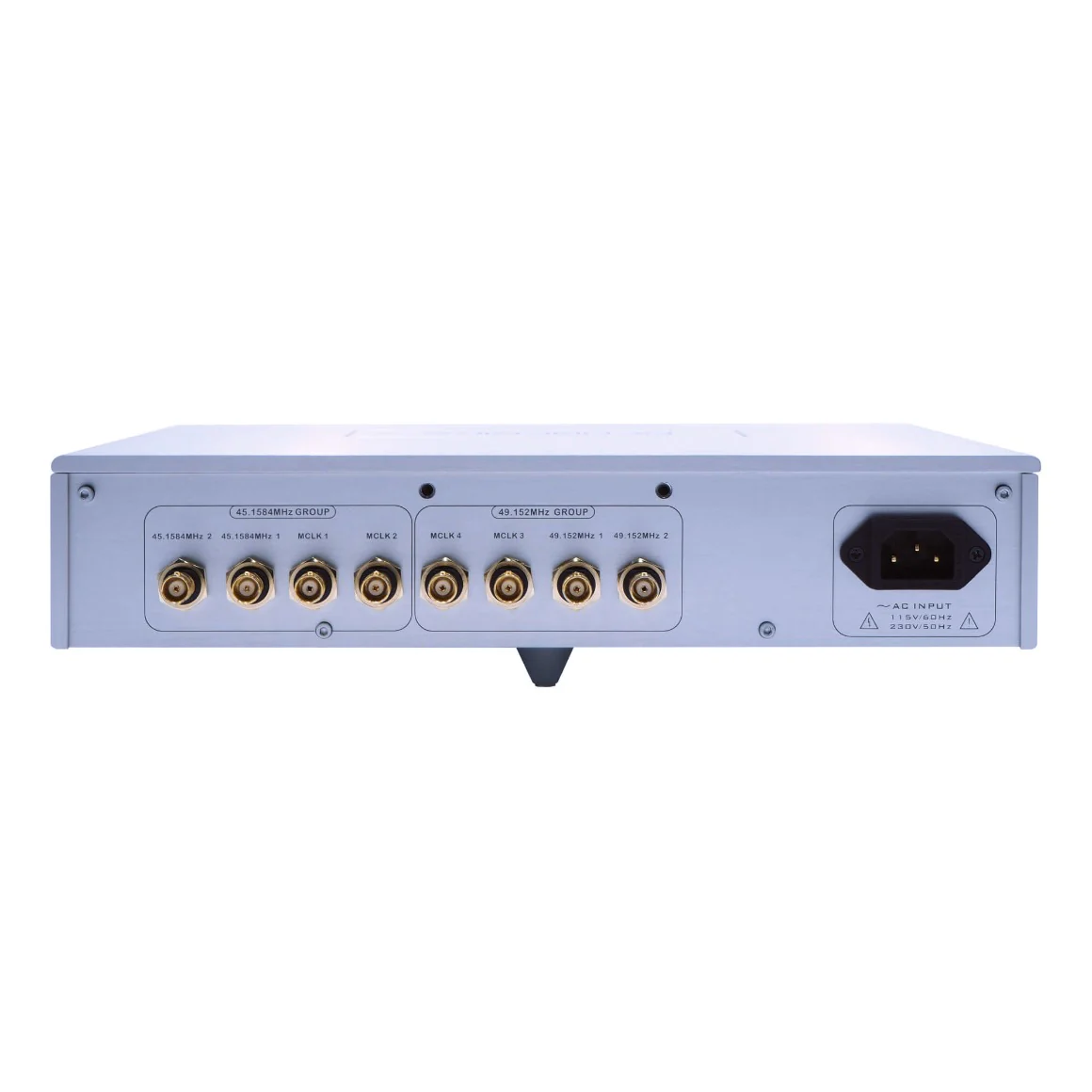

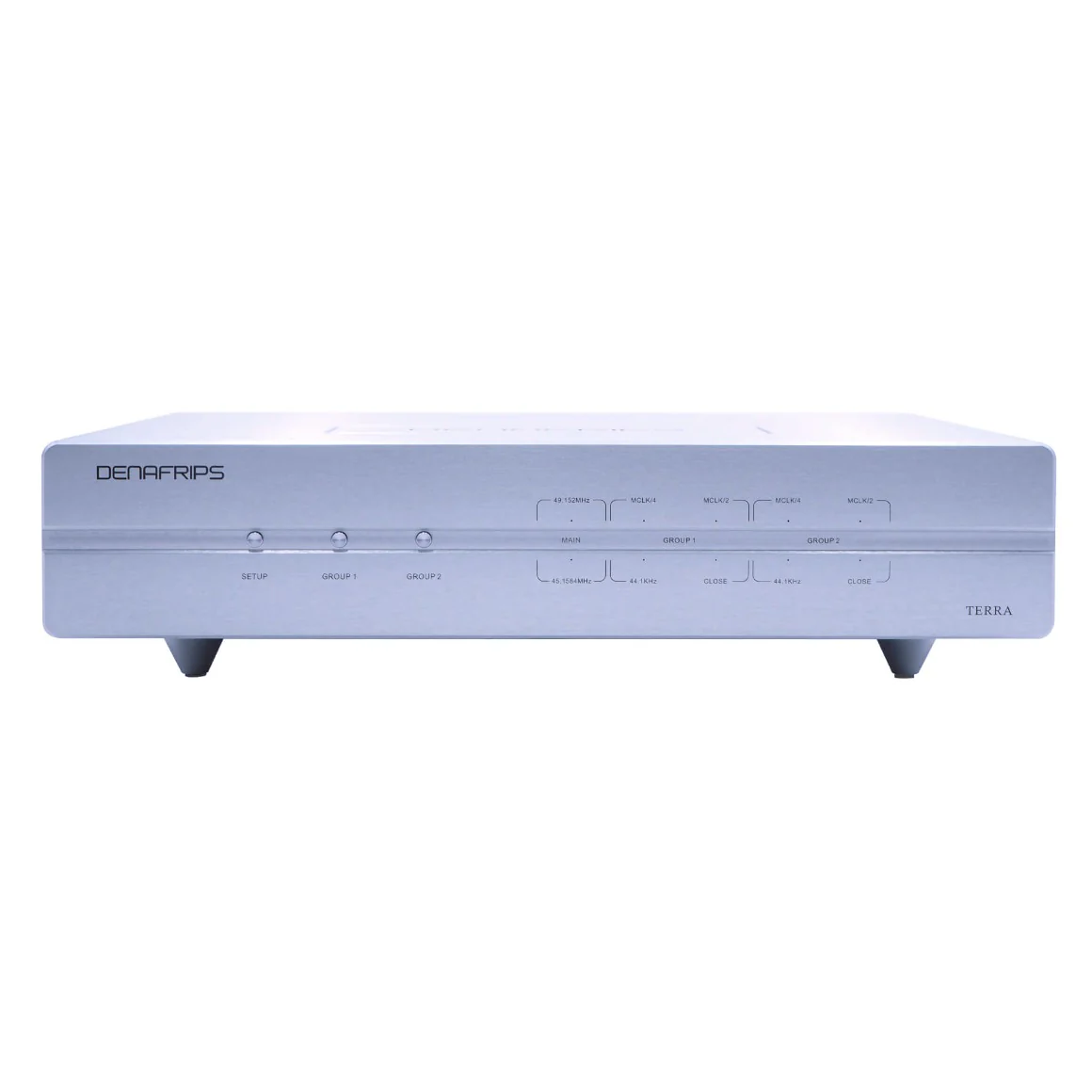

The Denafrips Terra Master Clock Generator is equipped with high precision Oven Controlled Crystal Oscillators (45.1548MHz, 49.152MHz), powered by a high current multi-stage Linear Power Supply with an oversized O-Core Transformer. Denafrips put a lot of attention to increasing the performance factors of the power supply to give thermal stability and low-level crosstalk along with low noise, high slew rate and high current. These provide the OCXO with adequate DC supply and overall stable performance. Denafrips Terra comes with BNC (75 ohms) output connectors and the MCLK1/2/3/4 Clock-Out frequencies are configurable manually by the intuitive front panel to suit the various applications. The Terra is compatible with Denafrips digital-to-digital converters like the Iris, Hermes and Gaia, and transports/streamers. The clock out (fixed) offers 45.1584MHz, 49.152MHz frequencies and the clock out adjustable offers 44.1kHz, 48kHz, 11.2896MHz, 12.288MHz, 22.5792MHz and 24.576MHz frequencies for syncing.
