Shanling - UP4
Chi-Fi
Excellence
1 Year of
Warranty
Ideal for
Taking Calls
Ideal for
Audiophiles
Best Suited for
Portable Use
Bluetooth with
LDAC,aptX HD & AAC
15 Hours of
Battery Life
2.5mm
Balanced Output
Pair with Laptop
via USB C
ESS Sabre ES9218P
Dual DAC Chip
Upto 160mW @ 32Ω
Power Output
Battery Capacity of
550 mAh
DESCRIPTION
SIZE ISN'T A PROBLEM IF YOU'RE GOOD AT IT

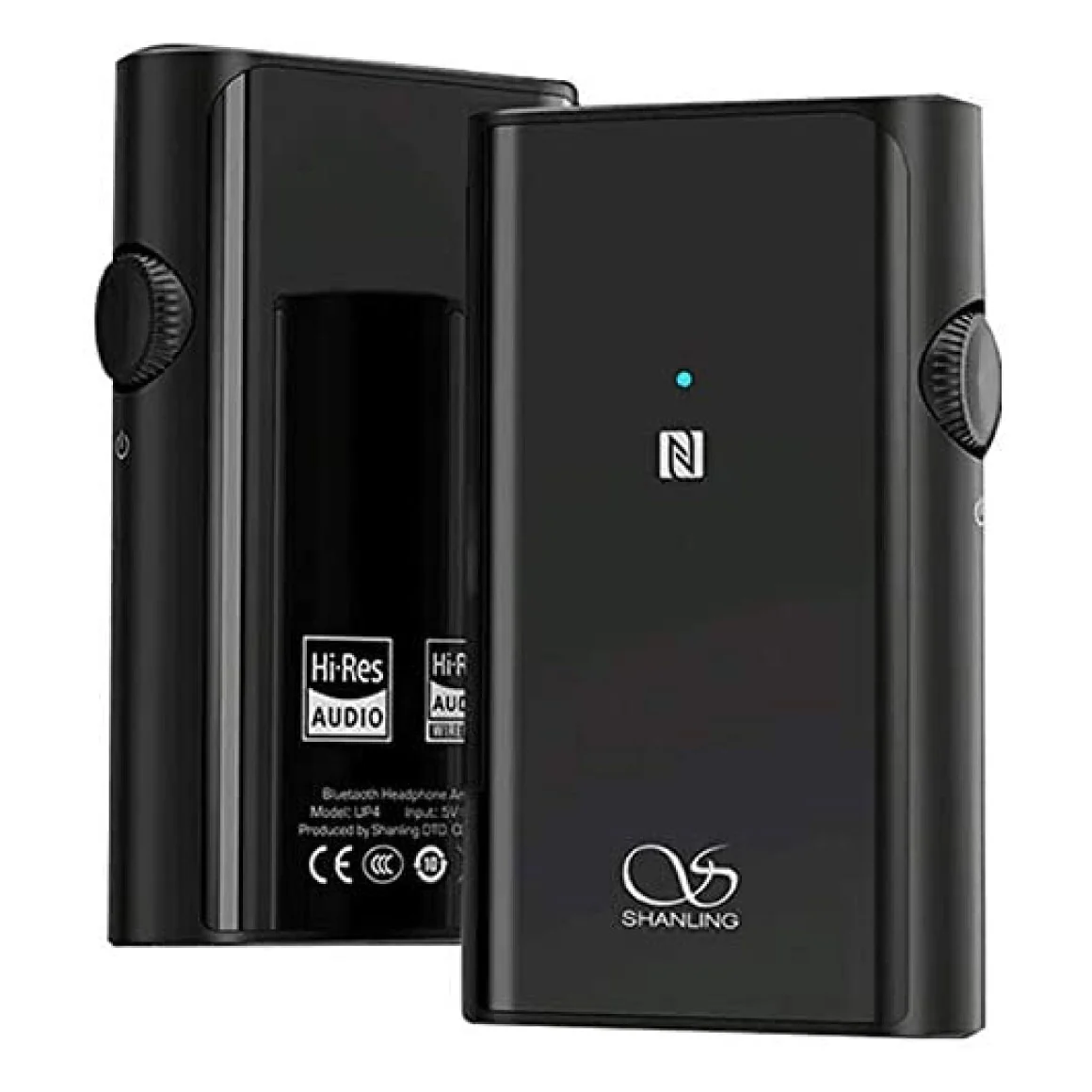

Shanling's iconic minimalistic design is evident in its Bluetooth amplifier — The UP4. It’s a combination of a beautiful aluminium frame and 2.5D glass panels that adds elegance. You can connect your Shanling UP4 to just about any device for the high-end audio quality.
OFFERS HI-RES AUDIO, WIRED OR WIRELESS

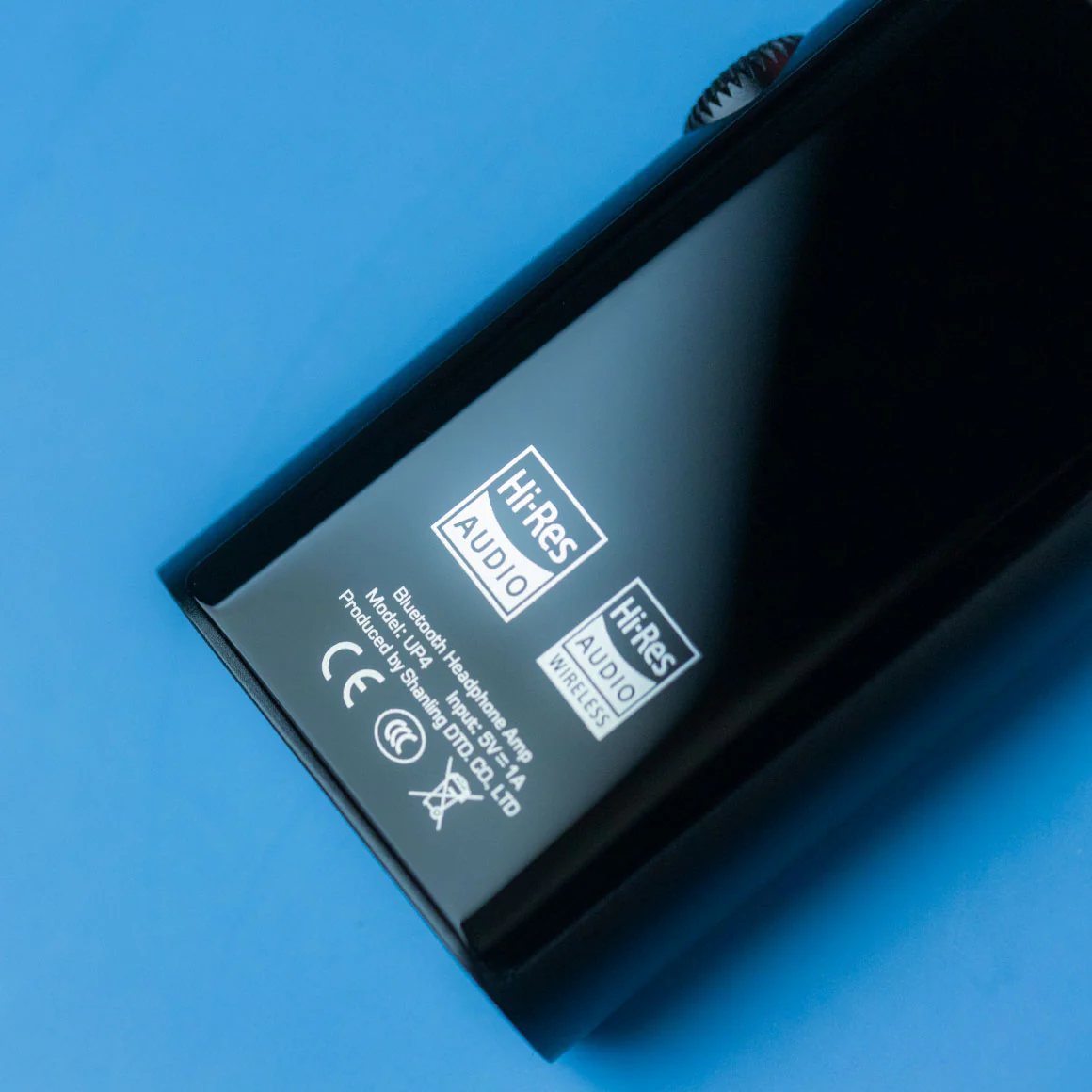

The Shanling UP4 enjoys added credibility with the 'Hi-Res Audio' and 'Hi-Res Wireless Audio' certification from the Japan Audio Society. You can trust it with high-resolution music.
USES APTX, APTX HD, LDAC, LHDC FOR HI-RES SEAMLESS AUDIO REPRODUCTION
The UP4 houses a CSR8675 Bluetooth chip. This chip ensures stable connectivity along with lower latency and high resistance to any disturbance. With just one touch you can pair it with any device that supports NFC. It also supports LDAC, HWA, LHDC and aptX HD which reproduces high-res audio even when streaming audio wirelessly. Stay connected!
HOUSES A DUAL DAC FOR FLAWLESS HI-RES WIRED AUDIO
If you are using your Shanling UP4 with a 2.5mm jack or even with the standard 3.5 mm jack output, you won't miss on the powerful sound output. Thanks to the Dual-DAC mode, it employs two ESS Sabre ES9218P audio chips which facilitate crystal-clear, high-resolution sound output along with power efficiency.
GAIN AND DIGITAL FILTER OPTIONS TO TWEAK YOUR MUSIC LISTENING EXPERIENCE
Personalize your music with the dedicated mode button. This button has gain and digital filter settings which will slightly modify your overall music according to your preferences. Need an external sound card for your laptop? Connect Shanling UP4 to your laptop or computer as a USB DAC/AMP using nothing but just a USB-C connecter cable.
TOP NOTCH NOISE CANCELLATION TECH FOR CLEARER CALLS
You can even make & take calls with the Shanling UP4. This is all thanks to the Knowles SiSonic microphone and latest 8th generation cVc noise cancellation tech. Your calls are now clearer with minimal background noise.
SHANLING'S CONTROLLER APP TO TAKE ABSOLTUE CONTROL OF YOUR UP4
Take your Shanling UP4's wirelessness up a notch with the Shanling Controller. This nifty app lets you control playback as well as set-up your UP4. You also get added functionality like equalizer, filter & gain support, OTA updates and more.
Get the Shanling Controller App here.
SPECS
| SUPPORTED BLUETOOTH CODEC | HWA(LHDC), LDAC, APT-X HD, APT-X Low, APT-X, AAC, SBC, Latency |
| BLUETOOTH CHIP | Qualcomm CSR8675 |
| AUDIO CHIP | ESS Sabre ES9218P x2 |
| BLUETOOTH VERSION | Bluetooth v5.0 |
| TRANSMISSION DISTANCE | 10m |
| MICROPHONE | Knowles SiSonic |
| OUTPUT POWER | 71mW @ 32 ohms (single ended, high gain) 91mW @ 32 ohms (single ended, Dual DAC mode) 160mW @ 32 ohms (balanced output) |
| SIGNAL TO NOISE RATIO | 120dB (single ended) 120dB (balanced) |
| CHANNEL SEPARATING DEGREE | 73dB @ 32 ohms (single ended) 96dB @ 32 ohms (balanced) |
| THD+N | 0.003% (LDAC/A-W/0.5V/32ohms) 0.03% (0.5V/others/A-W/32ohms) |
| BATTERY LIFE | 15 hours (single ended) 10 hours (balanced) |
| CHARGING TIME | 2 hours |
| BATTERY CAPACITY | 550mAh |
| POWER ADAPTER | DC 5V/500 mA |
| USB PORT | Type-C interface, supporting driver-free USB DAC |
| VOLUME CONTROL | Independent from smartphone volume setting, controlled by volume wheel |
| CONNECTOR | 3.5mm and 2.5mm jack |
| SIZE | 60 mm*36 mm*13.5 mm |
| WEIGHT | 37G |
| BOX CONTAINS | 1. Shanling - UP4 Portable Amp |
| 2. Clip Case | |
| 3. USB-C Cable | |
| 4. User Manual | |
| 5. Warranty |
COMPARISON
Shanling - UP4
₹ 7,999/- ₹ 9,999/- |
Shanling - UP2
₹ 5,999/- ₹ 7,999/- |
Astell&Kern - AK XB10
₹ 5,999/- ₹ 14,999/- |
FiiO - BTR5
₹ 8,990/- ₹ 9,990/- |
|
| Warranty |  |
|
|
|
| Ideal For | Smartphone & Desktop | Smartphone | Smartphone | Smartphone & Desktop |
| Weight | 37g | 26g | 23g | 43.7g |
| DAC Chip | ESS Sabre ES9218P X2 | ESS Sabre ES9218P | Cirrus Logic CS4350 | ESS SABRE ES9218P |
| Sample Rate | 32bit/348Khz | 24bit/96kHz | 24bit/48 kHz | 32bit/384kHz |
| Inbuilt Battery |  |
|
|
|
| Battery Life | 15 Hours | 11 Hours | 5 Hours | 9 Hours |
| Balanced Outputs | |
 |
|
|
| Outputs | 2.5mm & 3.5mm | 3.5mm | 2.5mm & 3.5mm | 2.5mm & 3.5mm |
| Digital Inputs | USB Type-C | USB Type-C | |
USB Type-C |
| Output level | Unbalanced: 91mW @ 32 Ohms Balanced:160mW @ 32 Ohms | 67mW@32 Ohms | |
PO About 80mW（32Ω Loaded） PO About 90mW（16Ω Loaded） BAL About 240mW（32Ω Loaded） BAL About 240mW（16Ω Loaded） |
| Signal to Noise Ratio | Unbalanced:120dB Balanced:120dB | 116dB | |
PO≥118dB (32Ω A-Weighted) BAL≥122dB(32Ω A-Weighted) |
| Bluetooth Version | V5.0 | V5.0 | V4.1 | V5.0 |
| Bluetooth Codecs | HWA, LDAC, aptX HD, aptX, AAC & SBC | LDAC, LHDC, aptX HD,AAC & SBC | aptX HD, aptX, AAC & SBC | AAC, SBC, aptX, aptX LL, aptX HD, and LDAC |
| MQA Support | |
|
|
|
| Volume Control | |
|
|
|
| Expert Verdict |
"The UP4 is a great little device for those people who have a good set of earphones or headphones yet don’t want to go down the expensive external DAP route." Audiophile On |
"UP2 is lovely. It’s a smart answer to the search for a small and portable Bluetooth source. Size does not always matter, the UP2 is diminutive in size, yet its a compelling device for audiophiles." Soundphile |
"This little device can transform your favorite wired headphones wireless and capable of high-resolution audio streaming thanks to its aptX HD support." Tech Hive |
"The FiiO BTR5 is the best Bluetooth receiver I have tried up to date, it offers pretty much everything I imagined on a 2020 Bluetooth device." Headfonics |
FAQs
DOWNLOADS
Warranty
1 Year Warranty
Don't sweat it, this Shanling UP4 comes with a 1 year warranty from Shanling that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Shanling's warranty in India.
Wireless Headphone amplifier
VGP Awards
Dec, 2019
"The Shanling UP4 is a great DAC/AMP for audiophiles who are looking to improve the sound quality and balanced output for their smartphone at a reasonable price."
Read More
"The Shanling UP4 is almost a Swiss army knife in terms of features offered and it’s a great companion to one’s every need when it comes to mobile DACs."
Read More
"The UP4 is a great little device for those people who have a good set of earphones or headphones yet don’t want to go down the expensive external DAP route."
Read More
